WZ30-40 Backhoe Loader
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operating Weight: 7.5 t
Dimensions: 7 × 2.1 × 2.95m
Power: 92 kW
Product Details

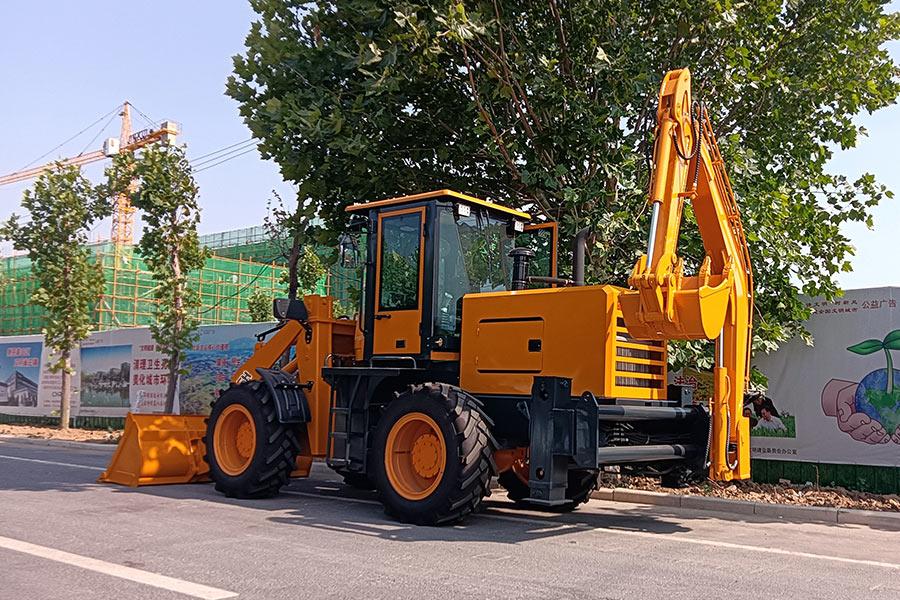

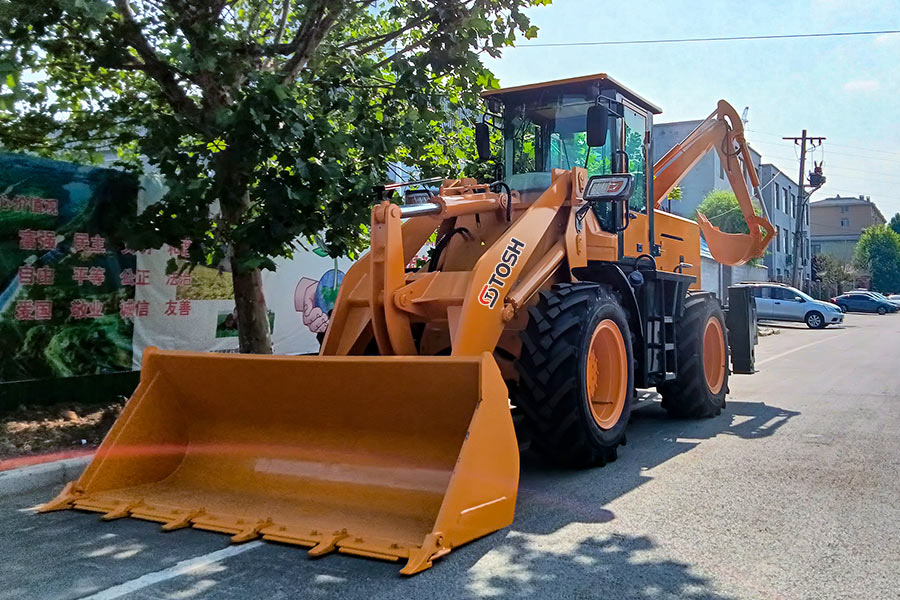

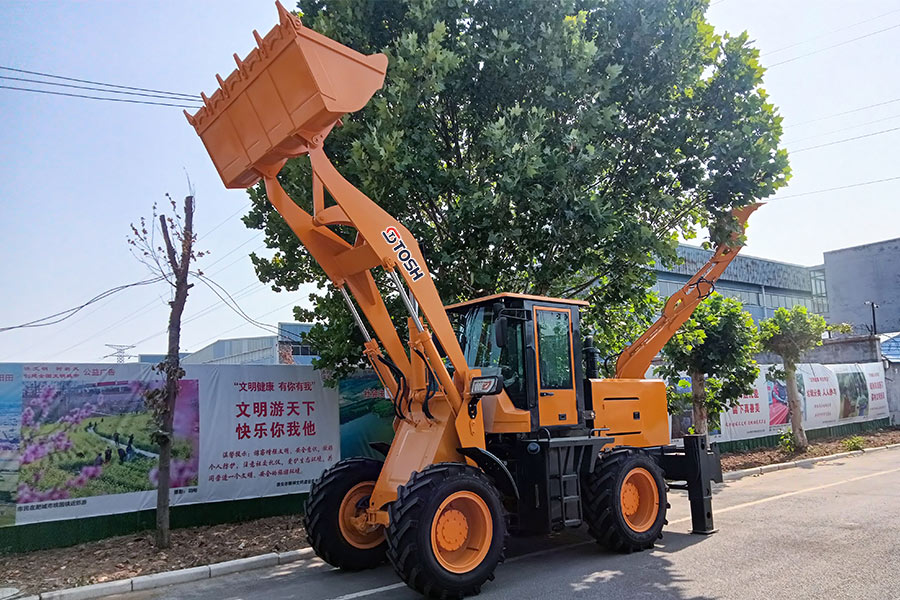

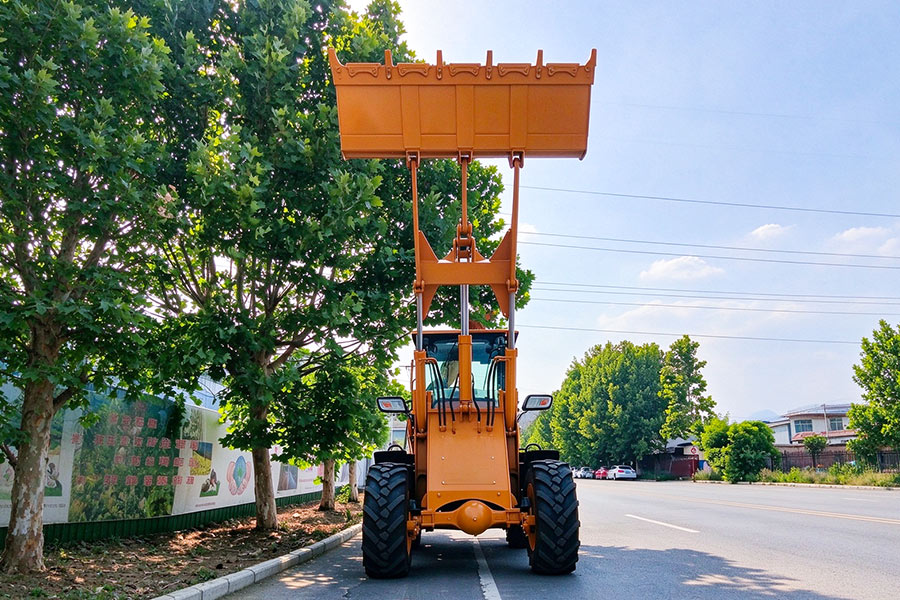

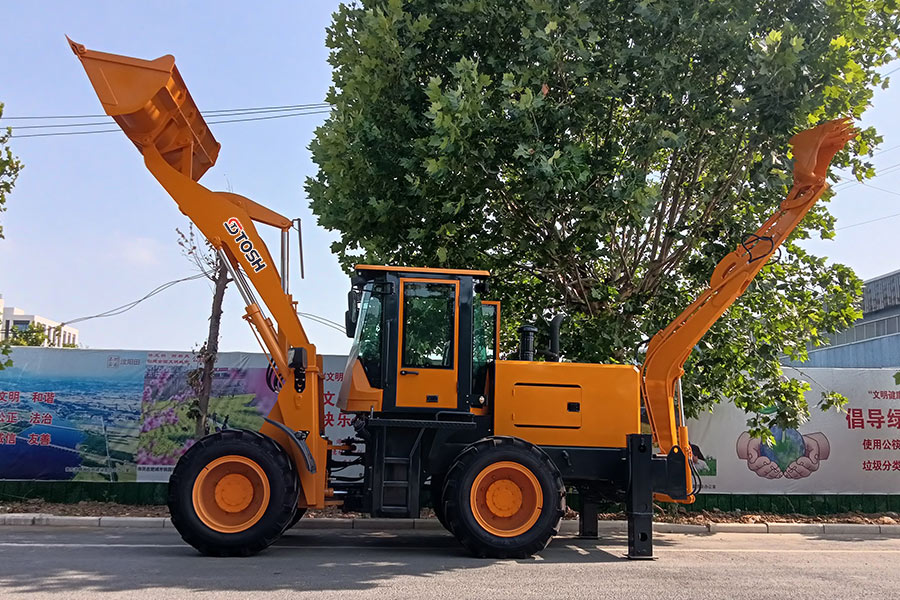

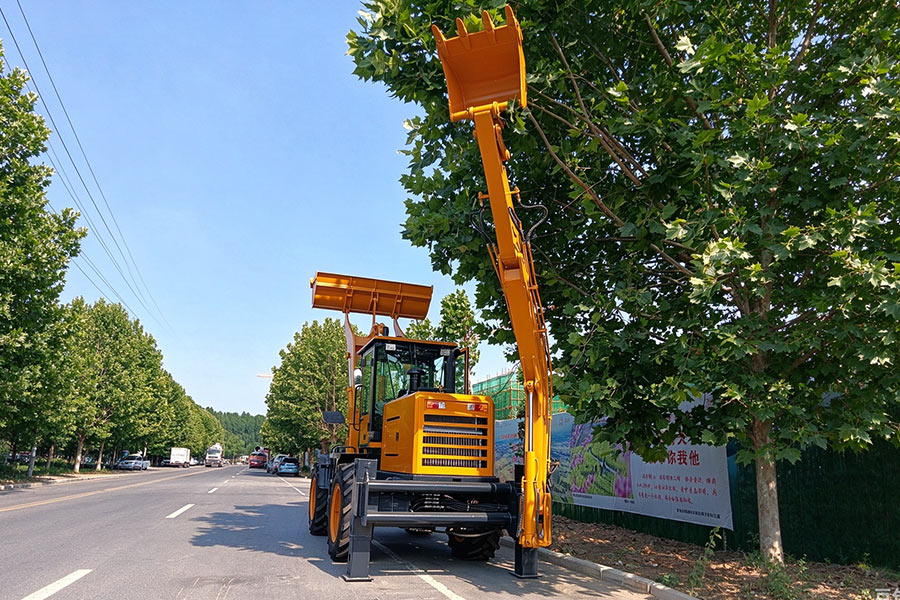

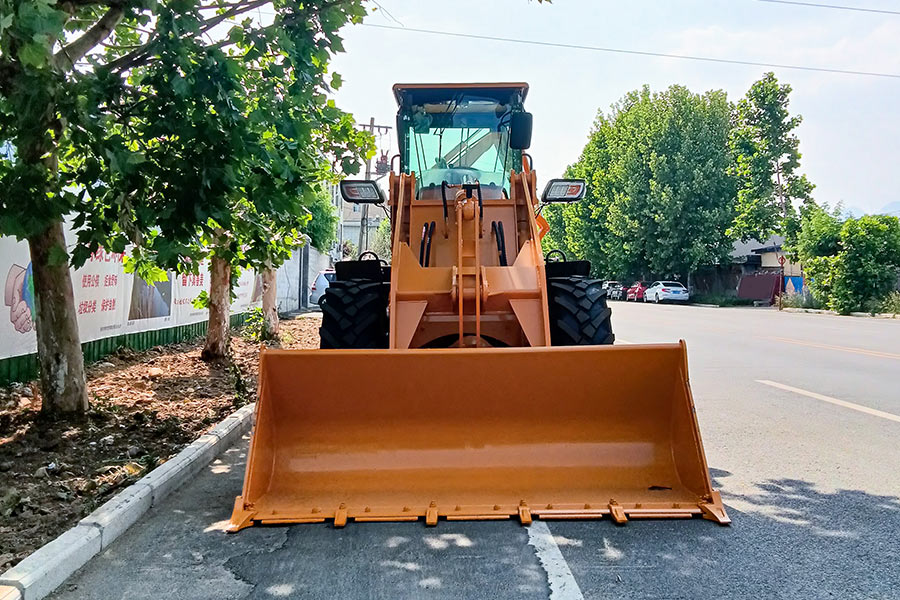

WZ30-40 7.5-Ton 4WD Backhoe Loader
The WZ30-40 backhoe loader combines a 3.5-ton front loader, 1.75 m³ bucket and 3.5 m digging depth. Powered by a 92 kW six-cylinder turbo diesel engine, its articulated 4WD system supports heavy material loading, excavation and utility construction.
Technical Specifications
| Model | WZ30-40 |
| Operating Weight | 7,500 kg |
| Engine Power | 92 kW / 6-Cylinder Diesel |
| Loader Rated Load | 3,500 kg |
| Loader Bucket | 1.75 m³ |
| Max. Dump Height | 3,500 mm |
| Max. Digging Depth | 3,500 mm |
| Max. Travel Speed | 38 km/h |
View Full Specifications▾
| Dimensions | 7,000 × 2,100 × 2,950 mm |
| Drive & Steering | 4WD / Articulated Steering |
| Transmission | Automatic / 2F + 2R |
| Turning Radius | 4,500 mm |
| Tire Size | 16/70-24 |
| Hydraulic Pressure | 22 MPa |
| Loader Breakout Force | 48 kN |
| Max. Loader Lift Height | 4,250 mm |
| Backhoe Bucket | 0.3 m³ |
| Backhoe Digging Force | 32 kN |
Equipment & Attachments
Machine Configuration: Six-cylinder turbocharged diesel engine, articulated hydraulic steering, hub-reduction 4WD axles, 2F+2R automatic transmission, air brakes and 180° backhoe boom swing.
Attachment Options: Contact us to confirm compatible loader buckets, backhoe buckets and other available work attachments.
Get a WZ30-40 Backhoe Loader Quote
Request WZ30-40 pricing and FOB/CIF quotations for your destination port.
Choose one machine or multiple units and ask about available attachments and configurations.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and intended application for a tailored offer.
Key Advantages
1. High-Capacity Front Loading: A 3.5-ton rated load and 1.75 m³ bucket support handling soil, sand and aggregates.
2. Six-Cylinder Diesel Power: The 92 kW turbocharged engine supports loading, digging and site-to-site travel.
3. Combined Loading & Excavation: The rear backhoe enables 3.5 m trench excavation alongside front-end material handling.
Applications
Road & Municipal Works: Trenching, drainage excavation and backfilling.
Material Loading: Handling soil, sand and aggregates at construction sites.
Utility & Site Construction: Pipeline trenching, foundation excavation and general earthmoving.
Note: Confirm final machine configuration, attachment compatibility and shipping details before ordering.
