WZ25-18 Backhoe Loader
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operating Weight: 3.8 t
Dimensions: 6.8 × 1.9 × 2.88m
Power: 58 kW
Product Details

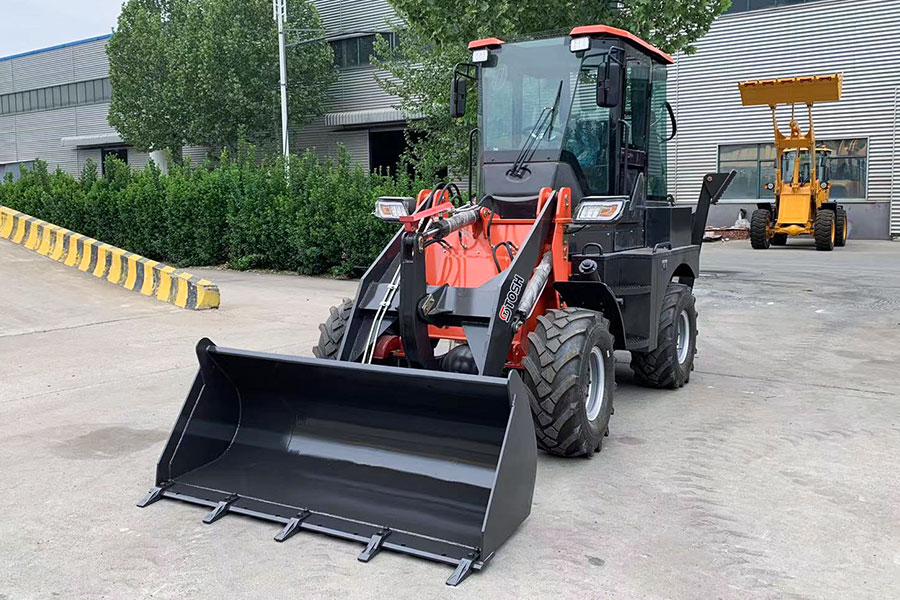

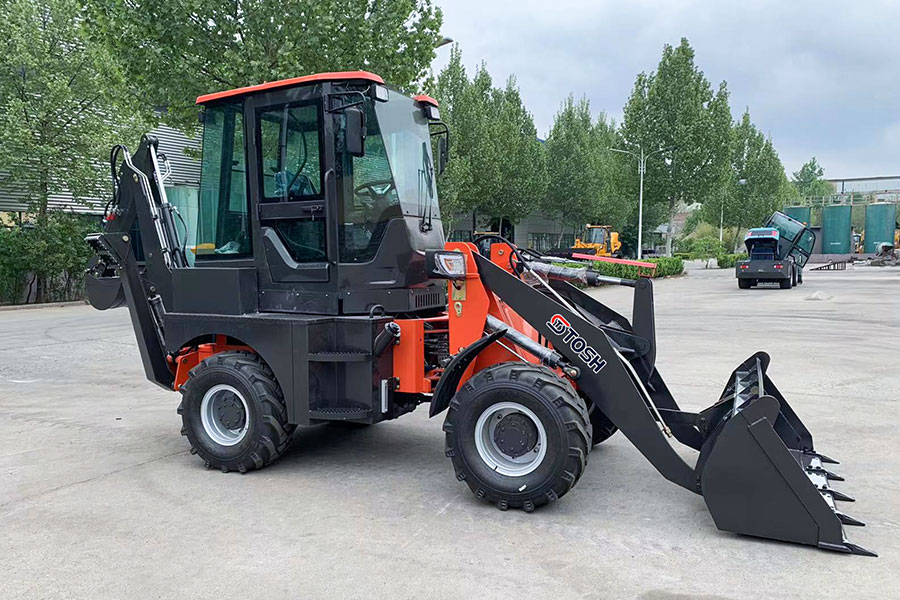

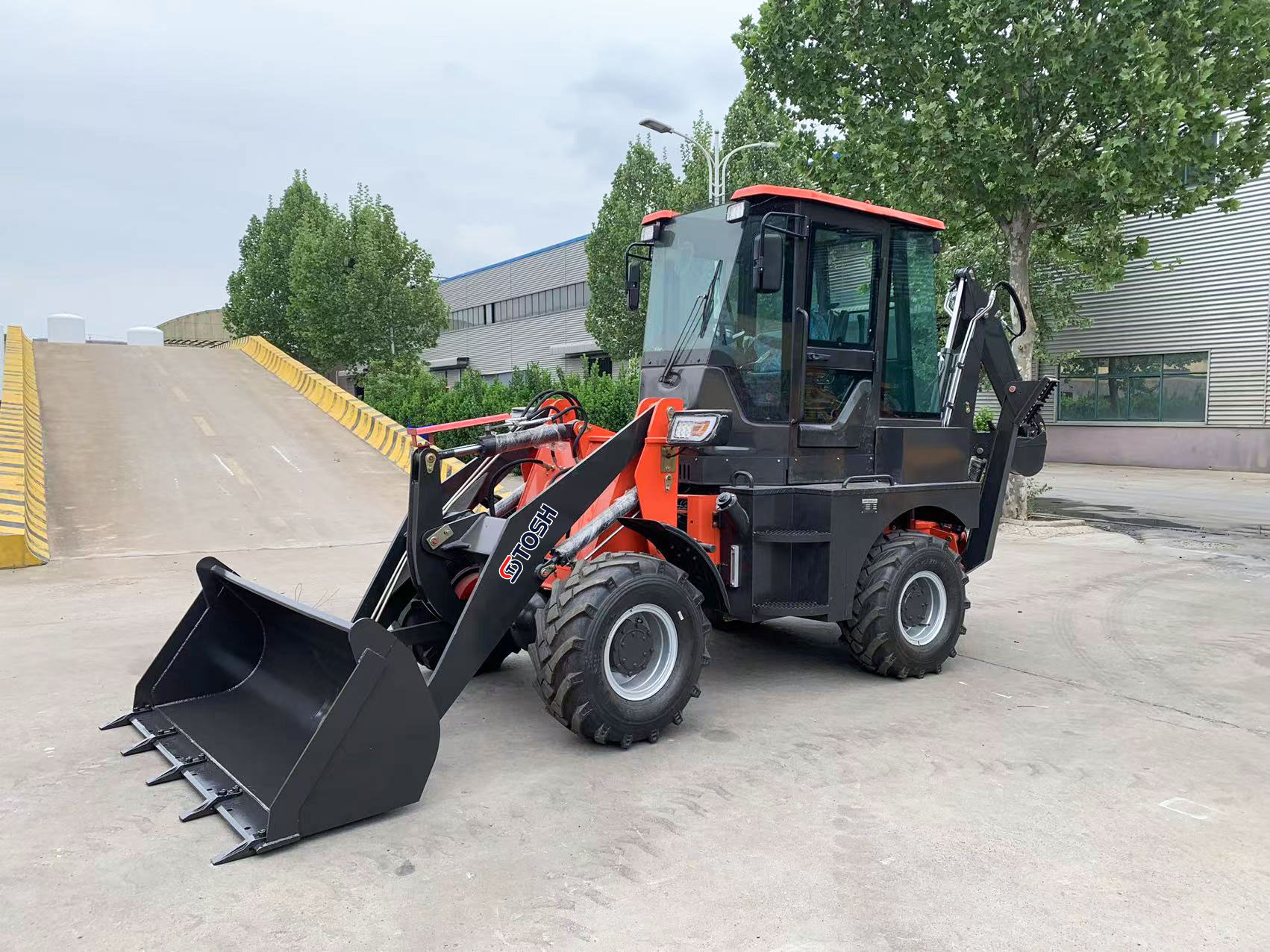

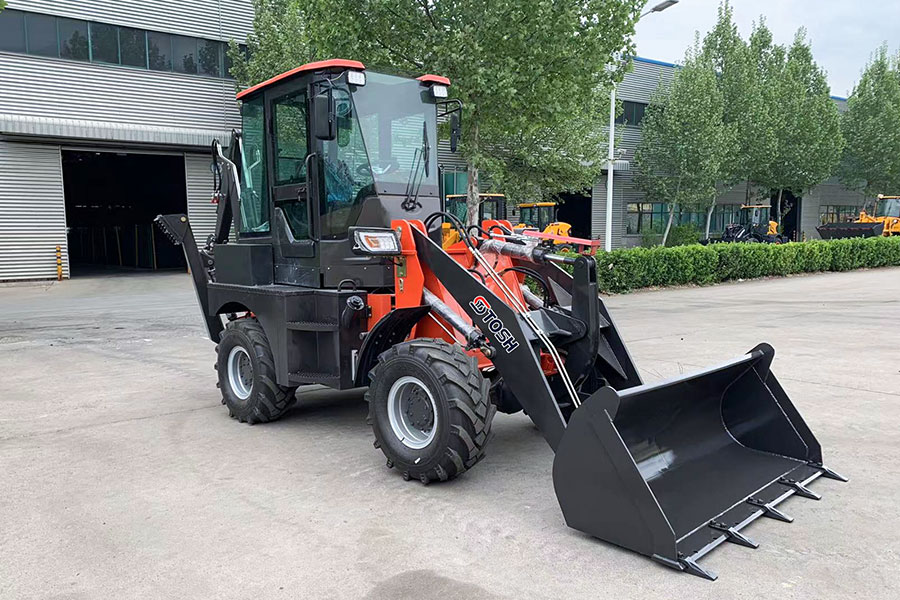

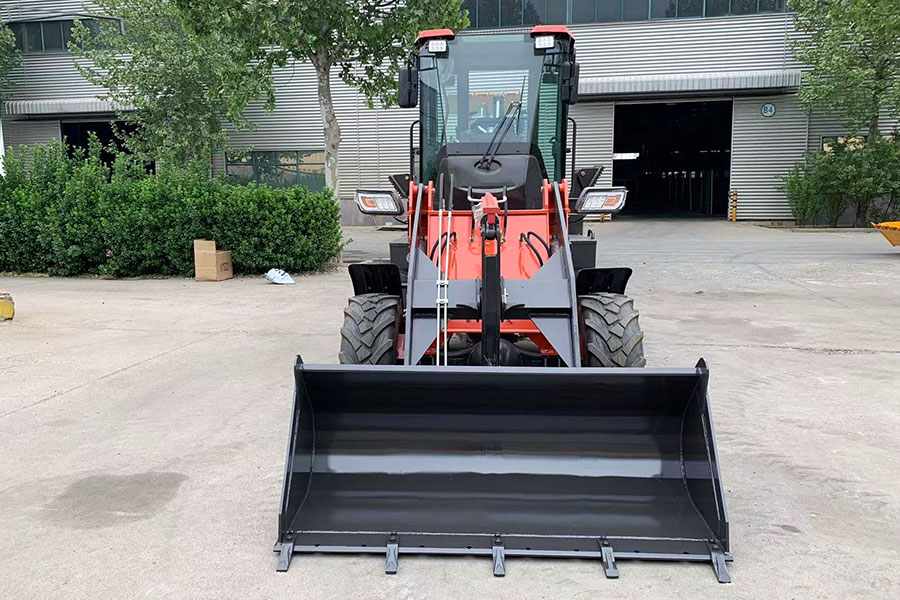

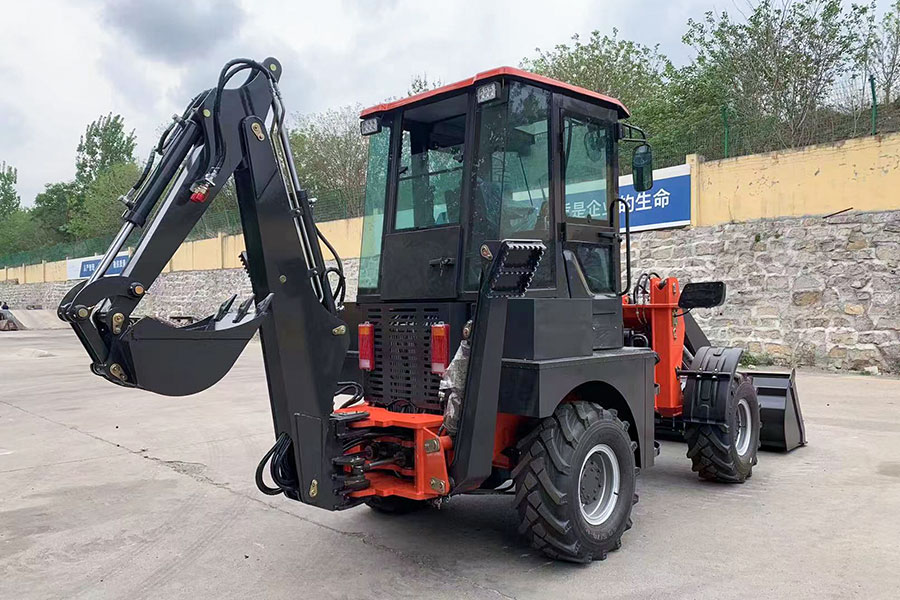

WZ25-18 3.8-Ton 4WD Backhoe Loader
The WZ25-18 backhoe loader combines a 1.8-ton front loader, 2.5 m digging depth and 58 kW turbo diesel engine. Its articulated 4WD steering and compact 1.9 m width support loading, trenching and site maintenance where working space is limited.
Technical Specifications
| Model | WZ25-18 |
| Operating Weight | 3,800 kg |
| Engine Power | 58 kW Turbo Diesel |
| Drive & Steering | 4WD / Articulated Steering |
| Loader Rated Load | 1,800 kg |
| Loader Bucket | 0.9 m³ |
| Max. Digging Depth | 2,500 mm |
| Backhoe Bucket | 0.22 m³ |
View Full Specifications▾
| Dimensions | 6,800 × 1,900 × 2,880 mm |
| Travel Speed | 28 km/h |
| Turning Radius | 4,800 mm |
| Transmission | Automatic / 2F + 2R |
| Tire Size | 23.5/70-16 |
| Hydraulic Pressure | 22 MPa |
| Loader Breakout Force | 34 kN |
| Loader Dump Height | 2,900 mm |
| Backhoe Swing Angle | 190° |
| Ground Clearance | 300 mm |
Equipment & Attachments
Machine Configuration: Articulated hydraulic steering, wheel-side reduction axles, automatic transmission, mechanical control joysticks, A-type hydraulic stabilizers with locks, tilting cab, rotating seat, cabin heater and skylight.
Attachment Options: Contact us to confirm compatible buckets and other available work attachments for your project.
Get a WZ25-18 Backhoe Loader Quote
Request WZ25-18 pricing and FOB/CIF shipping quotes for your destination port.
Choose one machine or multiple units and ask about available attachments and configurations.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and intended application for a tailored offer.
Key Advantages
1. Compact Articulated 4WD Design: A 1.9 m machine width and hydraulic steering support positioning in space-limited work areas.
2. Loading & Trenching Versatility: A 1.8-ton loader and 2.5 m digging depth handle material loading, trench excavation and backfilling.
3. Practical Operator Controls: Mechanical joysticks, an automatic transmission and a rotating seat support everyday loading and excavation work.
Applications
Municipal Maintenance: Drainage trenches, roadside repairs and backfilling.
Utility Installation: Water supply lines, shallow cable trenches and underground services.
Small Construction Sites: Material loading, excavation and general site preparation.
Note: Confirm final equipment configuration, attachment compatibility and shipping details before ordering.
