WZ15-26 Backhoe Loader
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operating Weight: 4.8 t
Dimensions: 5.8 × 1.85 × 2.75 m
Power: 60 kW
Product Details

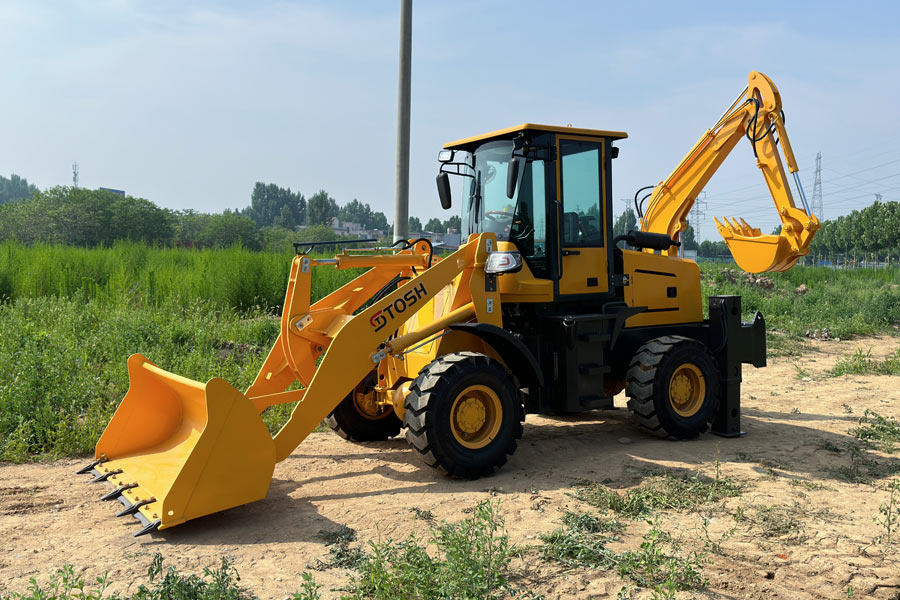

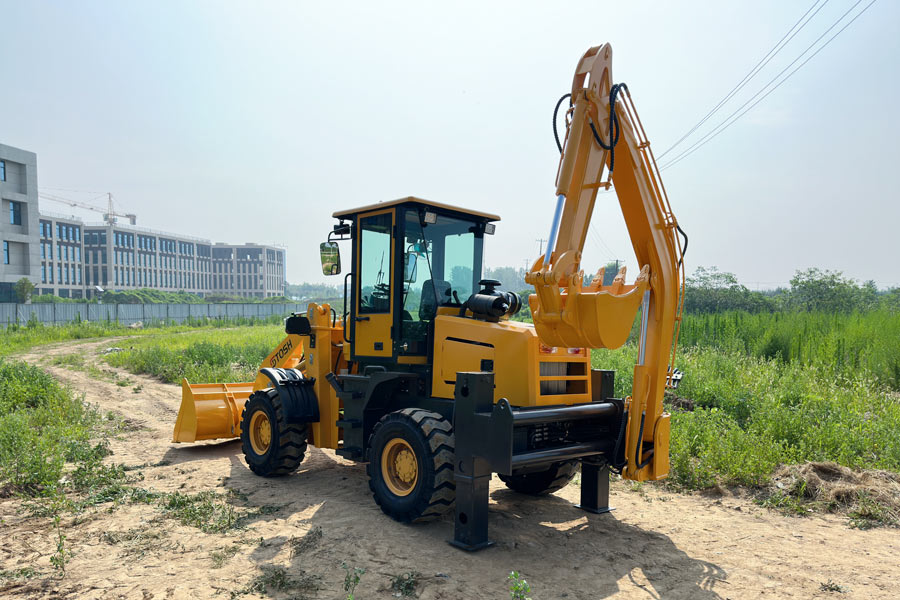

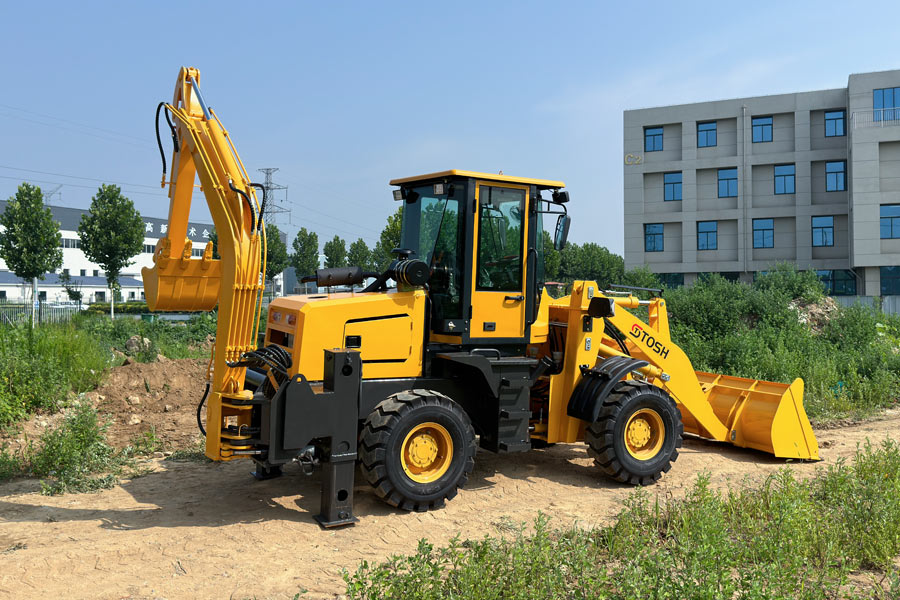

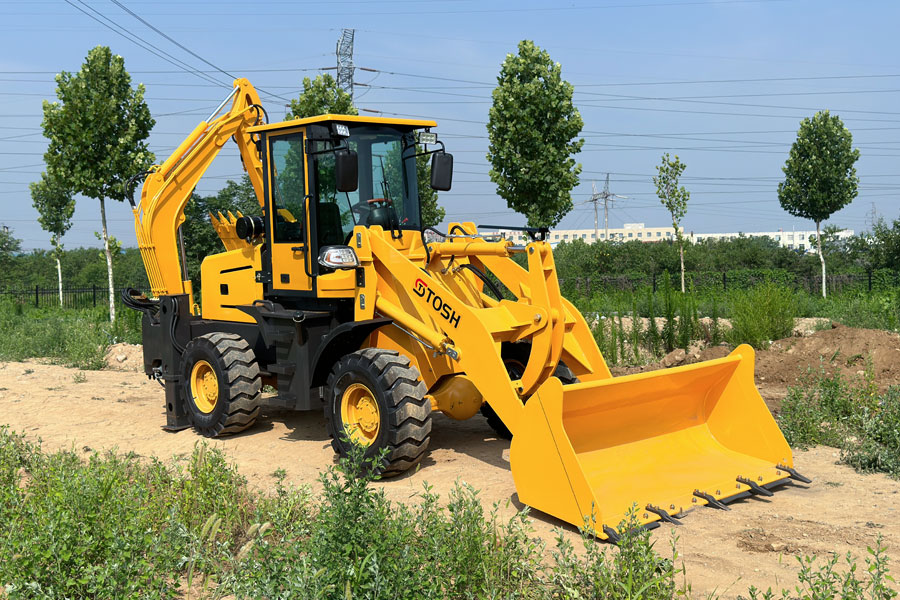

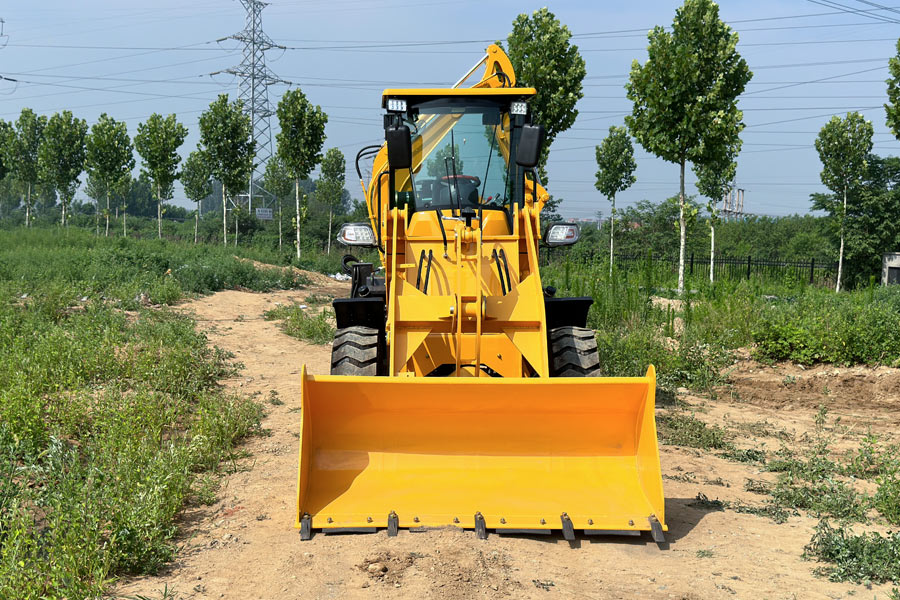

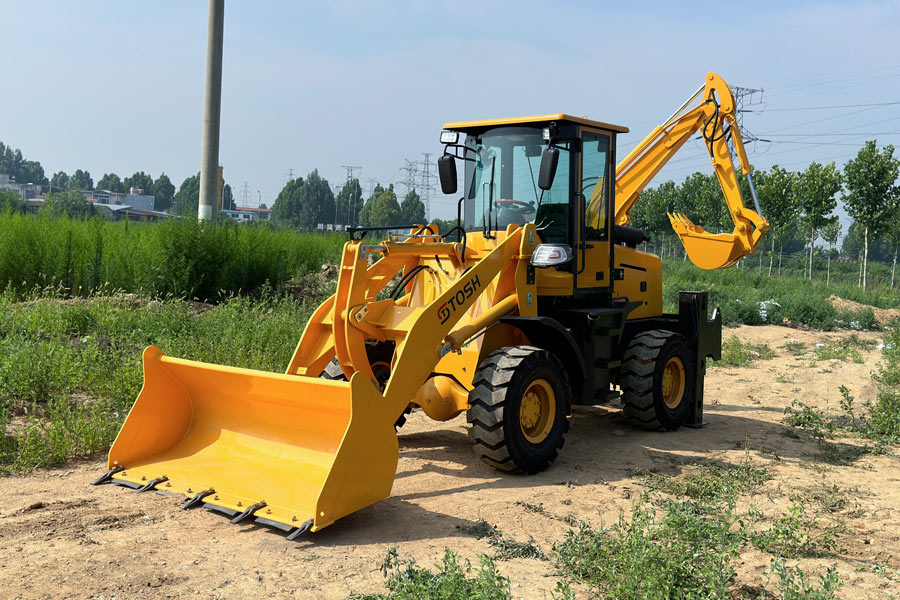

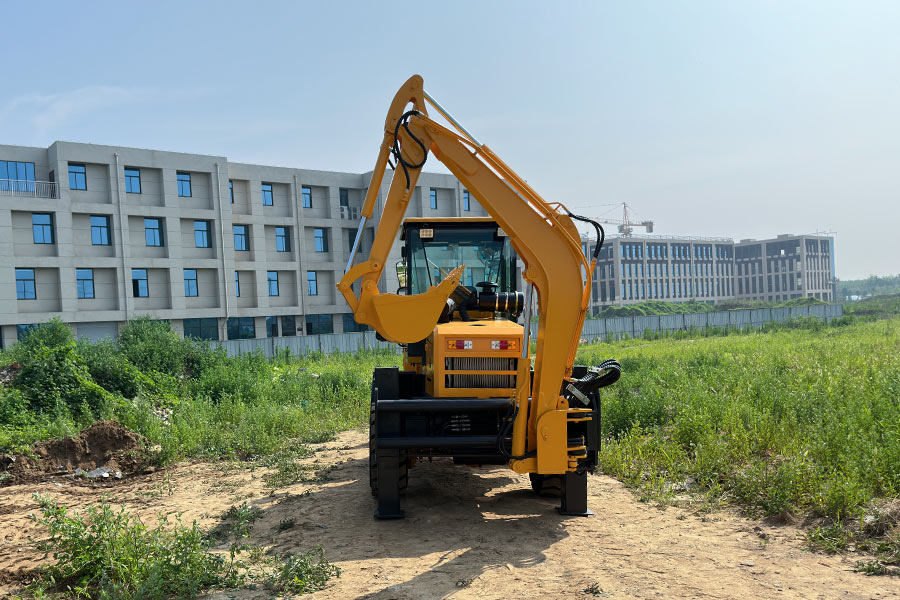

WZ15-26 4.8-Ton 4WD Backhoe Loader
The WZ15-26 backhoe loader combines a 2-ton front loader, 3.3 m dumping height and 2.7 m digging depth. Powered by a 60 kW turbocharged diesel engine, its articulated 4WD drivetrain supports material loading, trenching and utility construction in space-limited work areas.
Technical Specifications
| Model | WZ15-26 |
| Operating Weight | 4,800 kg |
| Engine Power | 60 kW Turbo Diesel |
| Loader Rated Load | 2,000 kg |
| Loader Bucket | 1.0 m³ |
| Max. Dump Height | 3,300 mm |
| Max. Digging Depth | 2,700 mm |
| Backhoe Bucket | 0.15 m³ |
View Full Specifications▾
| Dimensions | 5,800 × 1,850 × 2,750 mm |
| Travel Speed | 26 km/h |
| Turning Radius | 4,000 mm |
| Transmission | Automatic / 2F + 2R |
| Tire Size | 23.5-16 |
| Hydraulic Pressure | 20 MPa |
| Loader Breakout Force | 36 kN |
| Backhoe Digging Force | 28 kN |
| Max. Digging Radius | 4,600 mm |
| Backhoe Swing Angle | 180° |
Equipment & Attachments
Machine Configuration: Four-cylinder turbocharged diesel engine, articulated hydraulic steering, wheel-side reduction 4WD axles, 2F+2R automatic transmission, air brakes and a 180° backhoe swing range.
Attachment Options: Contact us to confirm compatible loader buckets, backhoe buckets and other available work attachments.
Get a WZ15-26 Backhoe Loader Quote
Request WZ15-26 pricing and FOB/CIF quotations for your destination port.
Choose one machine or multiple units and ask about available attachments and configurations.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and intended application for a tailored offer.
Key Advantages
1. High-Dump Front Loading: A 3.3 m dumping height and 1.0 m³ bucket support loading materials into elevated truck bodies.
2. Loading & Excavation Versatility: A 2-ton loader and 2.7 m digging depth cover material handling, trenching and backfilling.
3. Articulated 4WD Maneuverability: A 4 m turning radius and hub-reduction drive axles support positioning on construction and municipal jobsites.
Applications
Municipal & Road Works: Drainage excavation, roadside trenching and backfilling.
Truck & Material Loading: Loading soil, sand and aggregates on construction sites.
Utility Construction: Pipeline trenching, foundation excavation and site preparation.
Note: Confirm final machine configuration, attachment compatibility and shipping details before ordering.
