WZ10-20 Backhoe Loader
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operating Weight: 3.4 t
Dimensions: 5.5 × 1.75 × 2.65 m
Power: 42 kW
Product Details

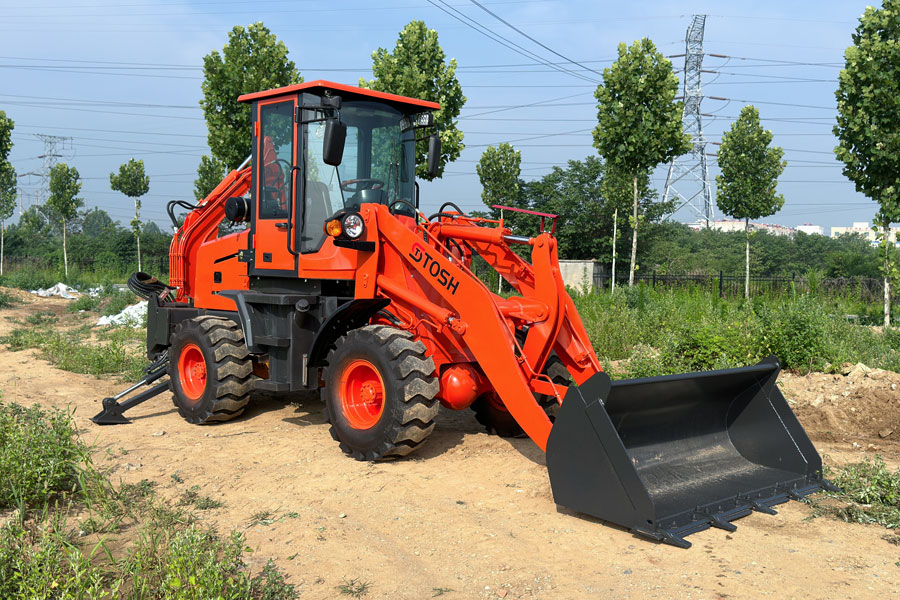

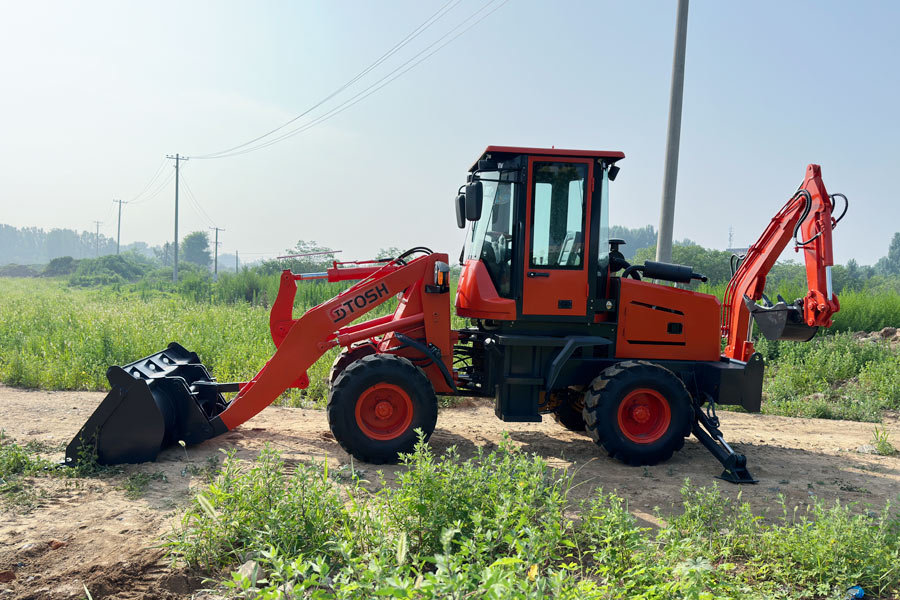

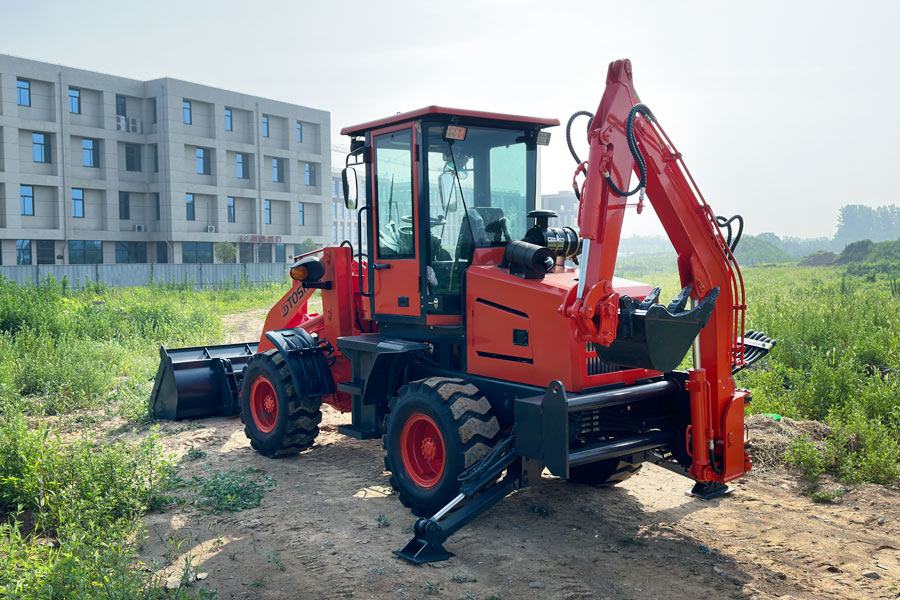

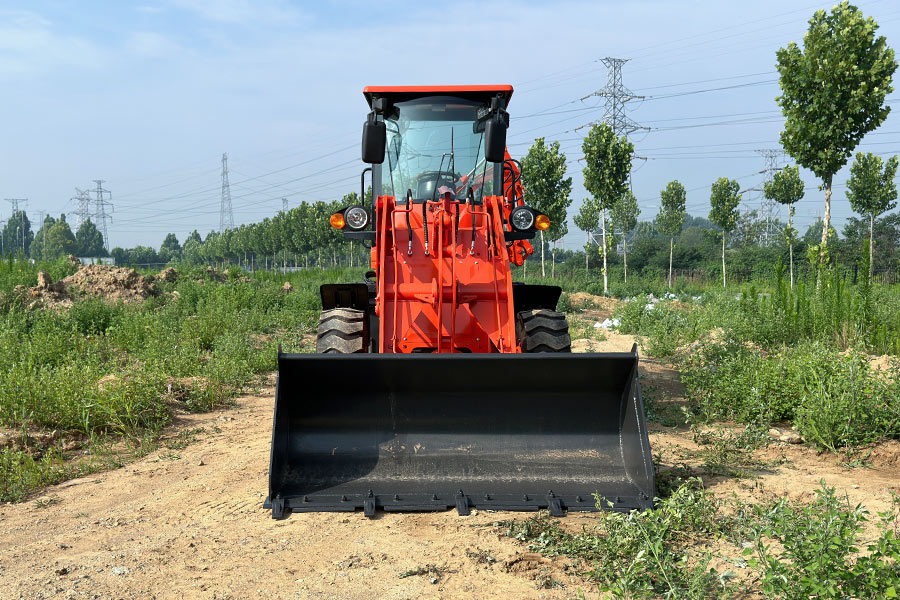

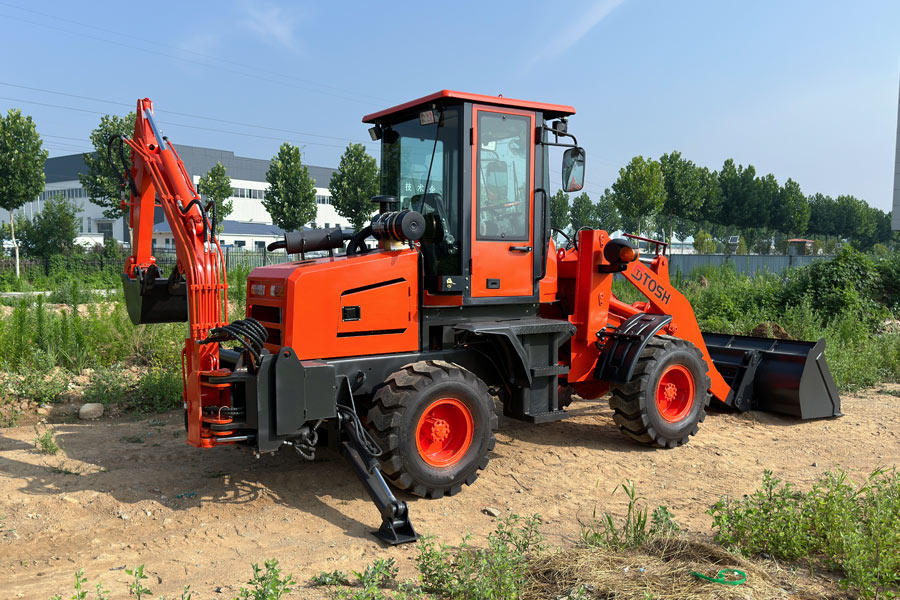

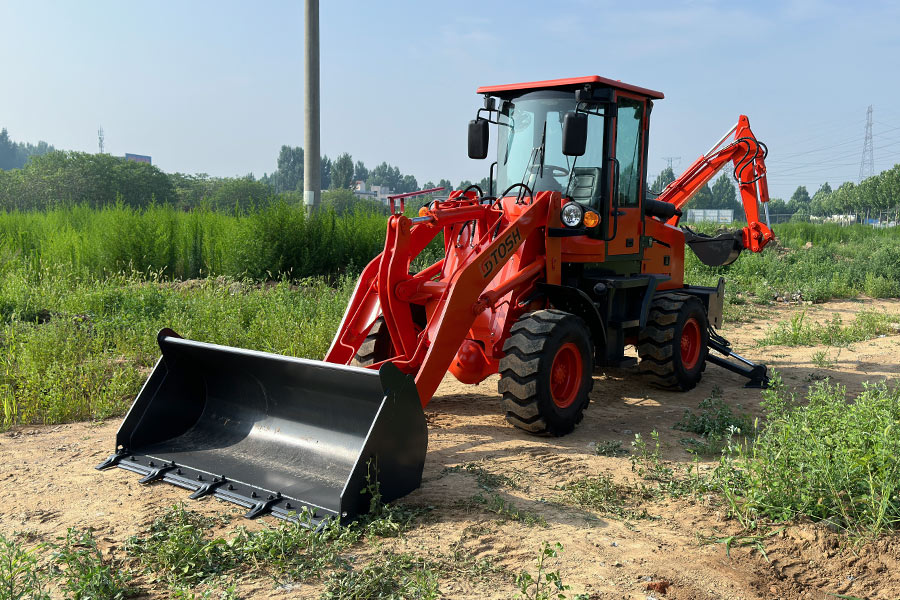

WZ10-20 3.4-Ton Compact 4WD Backhoe Loader
The WZ10-20 compact backhoe loader combines a 1.5-ton front loader, 2.8 m dumping height and 2.0 m digging depth. Powered by a 42 kW four-cylinder diesel engine, its 4WD drivetrain and articulated steering support loading, utility trenching and site maintenance in restricted work areas.
Technical Specifications
| Model | WZ10-20 |
| Operating Weight | 3,400 kg |
| Engine Power | 42 kW Diesel |
| Loader Rated Load | 1,500 kg |
| Loader Bucket | 0.75 m³ |
| Max. Dump Height | 2,800 mm |
| Max. Digging Depth | 2,000 mm |
| Backhoe Bucket | 0.1 m³ |
View Full Specifications▾
| Dimensions | 5,500 × 1,750 × 2,650 mm |
| Travel Speed | 26 km/h |
| Turning Radius | 3,500 mm |
| Transmission | Automatic / 2F + 2R |
| Drive Axles | Isuzu Axles |
| Hydraulic Pressure | 20 MPa |
| Loader Breakout Force | 36 kN |
| Backhoe Digging Force | 25 kN |
| Backhoe Digging Radius | 2,900 mm |
| Backhoe Swing Angle | 180° |
Equipment & Attachments
Machine Configuration: Four-cylinder water-cooled diesel engine, articulated hydraulic steering, 4WD with Isuzu axles, 2F+2R automatic transmission, hydraulic brakes and a 180° backhoe swing range.
Attachment Options: Contact us to confirm compatible loader buckets, backhoe buckets and other available work attachments.
Get a WZ10-20 Backhoe Loader Quote
Request WZ10-20 pricing and FOB/CIF quotations for your destination port.
Choose one machine or multiple units and ask about available attachments and configurations.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and intended application for a tailored offer.
Key Advantages
1. Compact Articulated 4WD Design: A 1.75 m machine width and 3.5 m turning radius help maneuver around restricted jobsites.
2. Loading & Trenching Versatility: A 1.5-ton rated loader and 2.0 m digging depth support material handling, trenching and backfilling.
3. Practical 4WD Drivetrain: Isuzu axles and automatic 2F+2R transmission support site mobility and routine earthmoving tasks.
Applications
Municipal Maintenance: Drainage trenches, roadside repairs and backfilling.
Utility Installation: Water pipelines, shallow cable trenches and underground services.
Small Construction Sites: Material loading, minor excavation and site preparation.
Note: Confirm final machine configuration, axle specification, attachment compatibility and shipping details before ordering.
