XE60G Mini Excavator
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operation weight:6000Kg
Bucket capacity: 0.24cbm
Rated power: 35Kw
Product Details

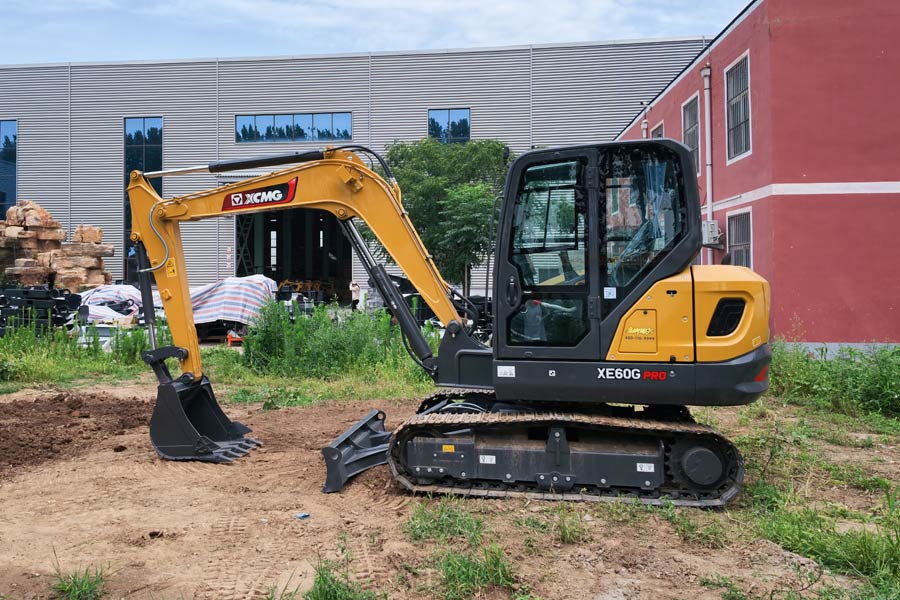

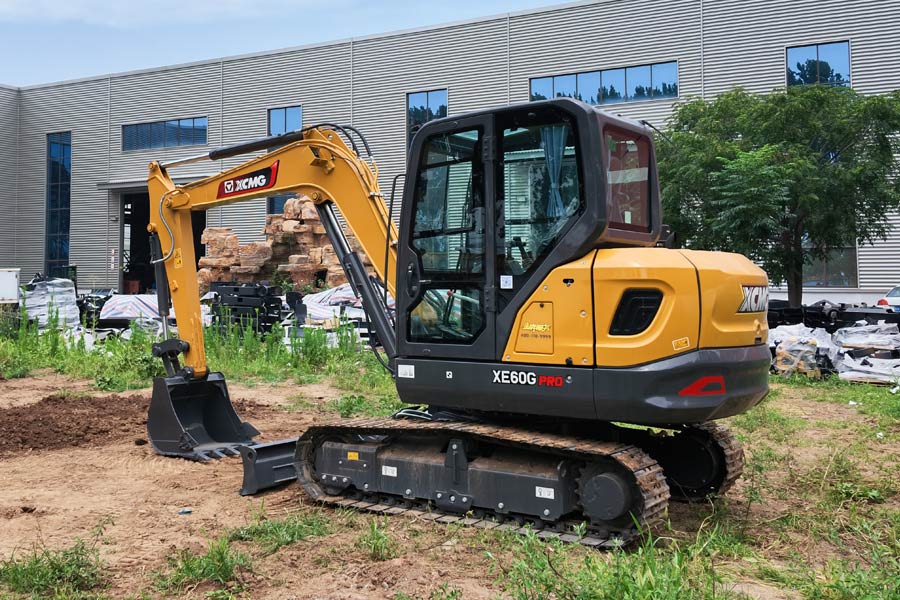

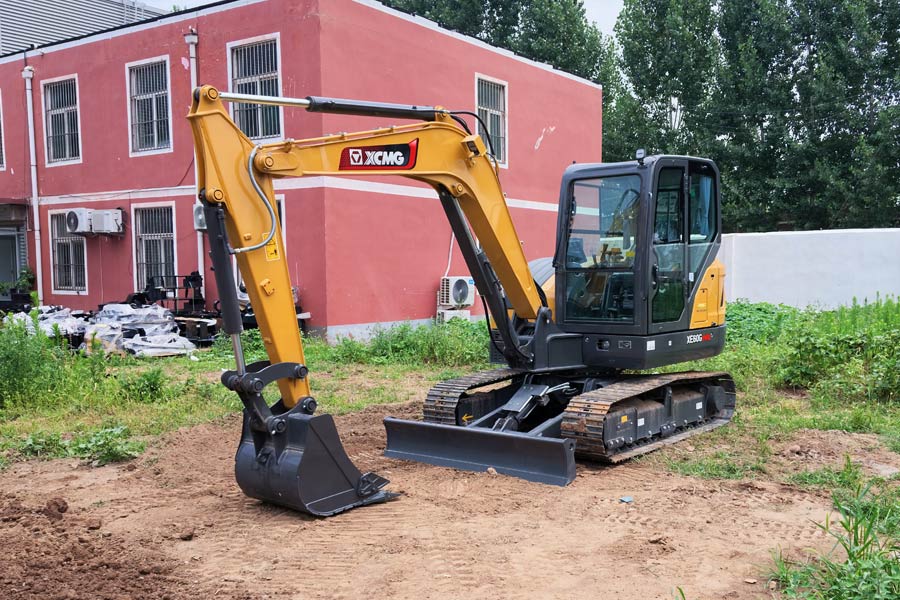

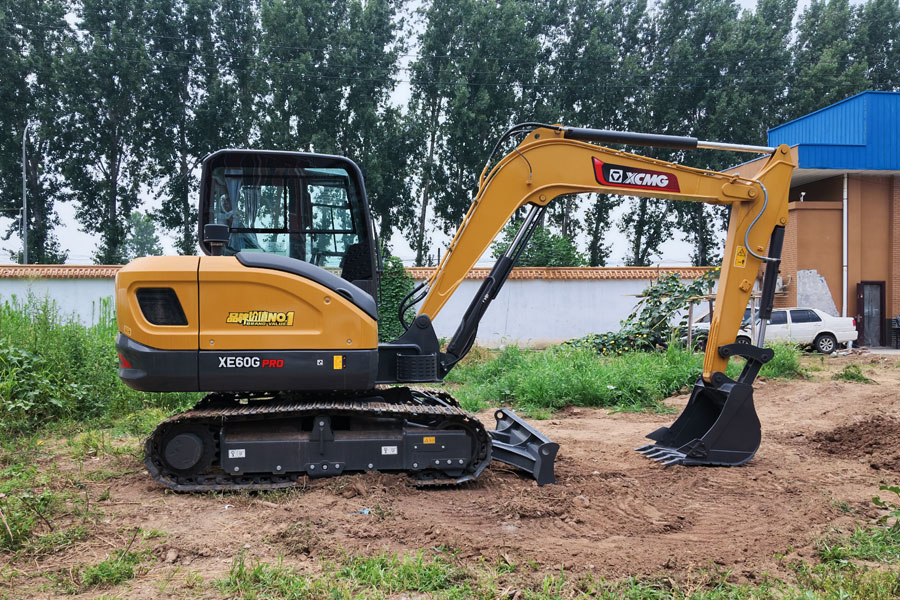

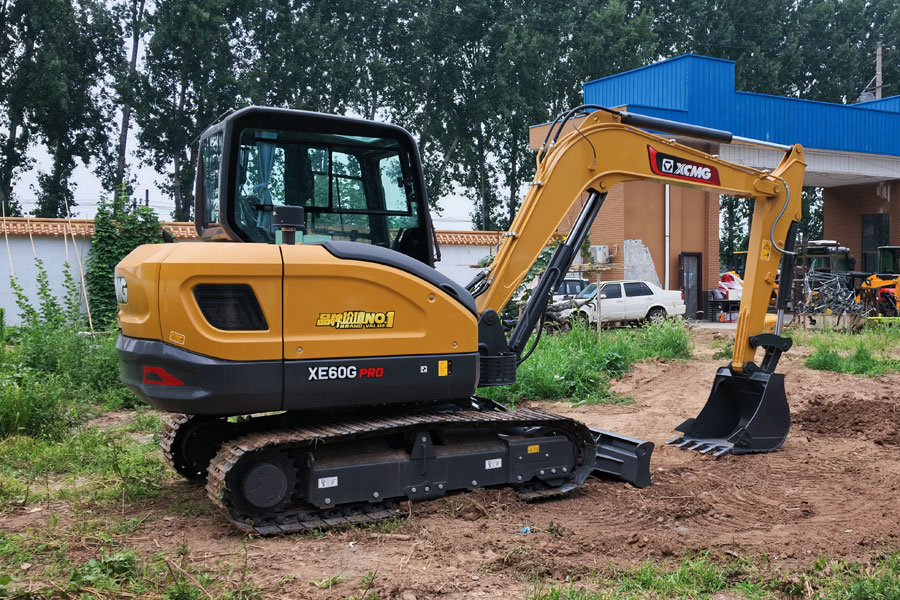

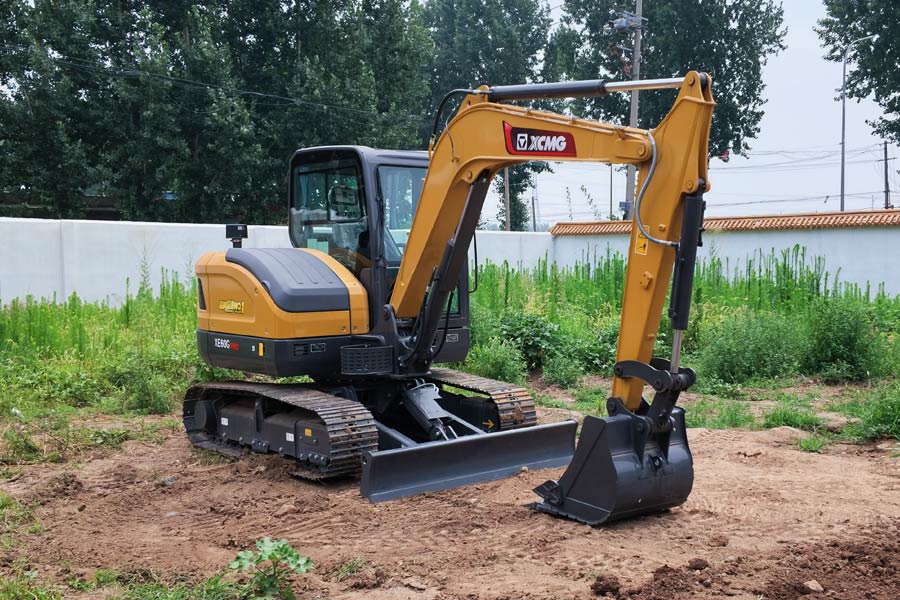

XE60G PRO Cabin 6-Ton Excavator
The XE60G PRO Cabin excavator combines a 6,000 kg operating weight, 48.3 kN bucket digging force and 158.4 L/min variable piston hydraulics. With an enclosed cab, Kubota V2607 diesel engine, 400 mm steel tracks and 3.83 m digging depth, it supports construction and utility excavation.
Technical Specifications
| Model | XE60G PRO Cabin |
| Operating Weight | 6,000 kg |
| Operator Cab | Fully Enclosed |
| Track Configuration | 400 mm Steel Tracks |
| Max. Digging Depth | 3,830 mm |
| Bucket Capacity | 0.24 m³ |
| Hydraulic System | 24.5 MPa / 158.4 L/min |
| Engine | Kubota V2607 Diesel |
View Full Specifications▾
| Overall Dimensions | 6,010 × 2,000 × 2,650 mm |
| Track Length | 2,535 mm |
| Max. Digging Reach | 6,130 mm |
| Max. Dumping Height | 3,945 mm |
| Travel Speed | 2.4 / 4.2 km/h |
| Bucket Digging Force | 48.3 kN |
| Arm Digging Force | 32.5 kN |
| Hydraulic Pump | Variable Piston Pump |
| Ground Pressure | 33.4 kPa |
| Tail Swing Radius | 1,700 mm |
Equipment & Engine Options
Machine Configuration: Enclosed operator cab, 400 mm steel tracks, variable piston pump, load-sensitive hydraulic valve, piston swing motor, two-speed travel motors and 0.24 m³ digging bucket.
Engine & Attachments: Kubota V2607 four-cylinder water-cooled diesel (35 kW), with 2.615 L displacement. Confirm cabin equipment, emissions documentation, attachment compatibility and auxiliary hydraulic flow requirements.
Get an XE60G PRO Cabin Excavator Quote
Request XE60G PRO Cabin pricing and FOB/CIF quotations for your destination port.
Choose single or multiple units and ask about cabin equipment, suitable attachments and available options.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and application for a tailored offer.
Key Advantages
1. 6-Ton Digging Capacity: The 48.3 kN bucket force and 32.5 kN arm force support utility excavation and earthmoving.
2. Variable Piston Hydraulics: A 158.4 L/min main pump flow and 24.5 MPa maximum pressure provide the specified hydraulic capacity for machine operation.
3. Extended Working Range: A 3.83 m digging depth and 3.945 m dumping height support trench excavation and material loading.
Applications
Utility Construction: Excavation for pipelines, drainage channels and underground infrastructure.
Foundation Excavation: Ground preparation and earthmoving for building and site construction.
Roadwork & Site Preparation: Excavation, trenching and material handling on suitable construction sites.
Note: Confirm cabin HVAC and safety specifications, engine emissions documentation, auxiliary hydraulic flow, attachment compatibility and transport dimensions before ordering.
