TE30T Cabin Mini Excavator
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operation weight: 3000Kg
Bucket capacity: 0.068cbm
Rated power: 15.2Kw
Product Details

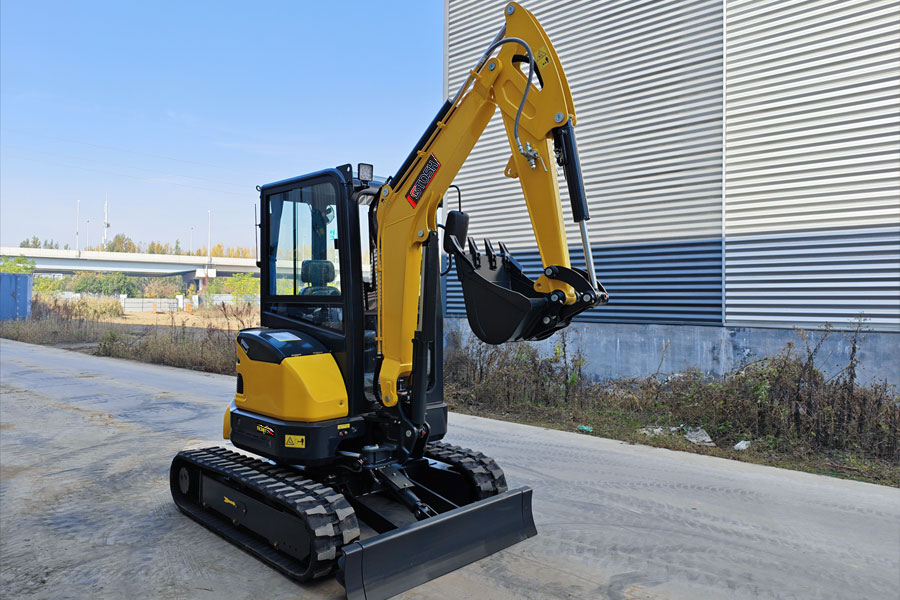

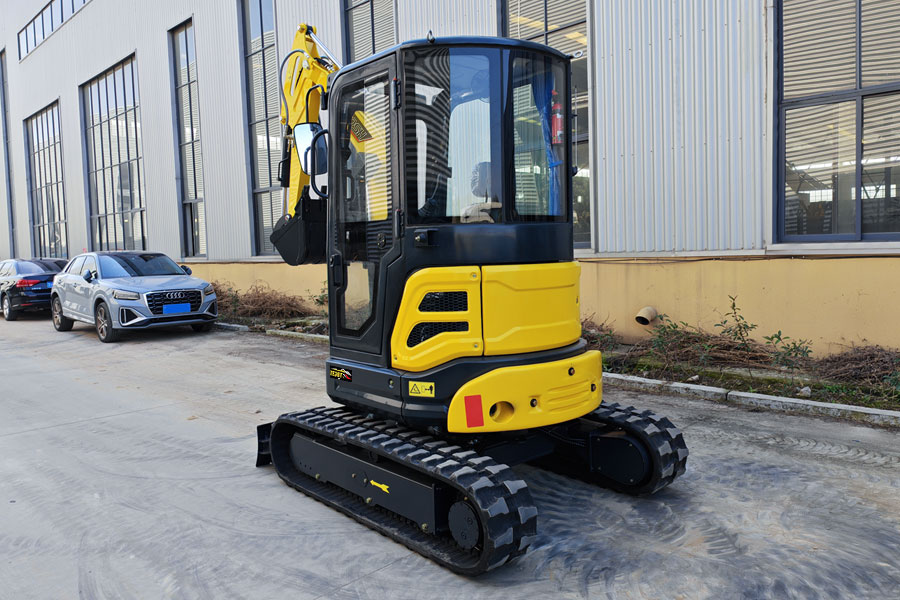

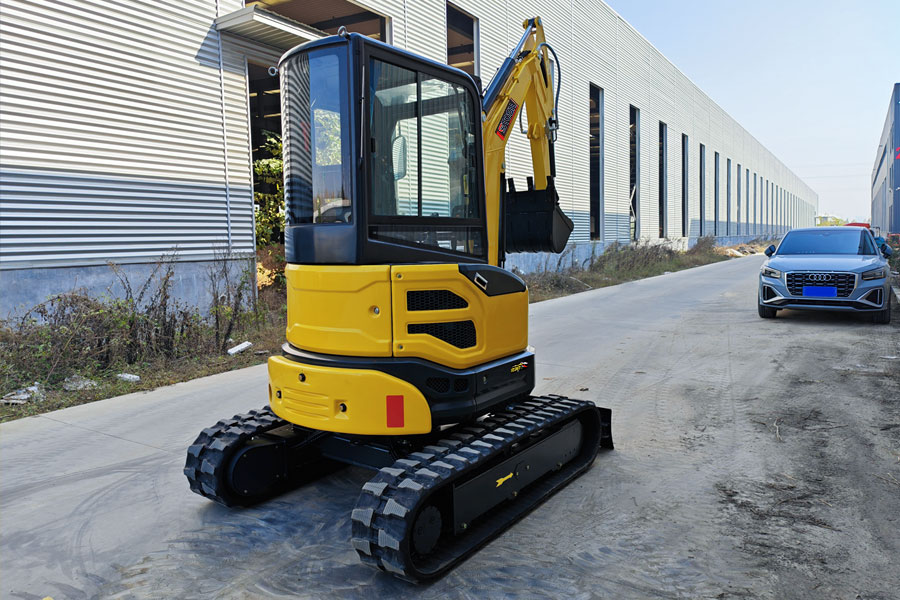

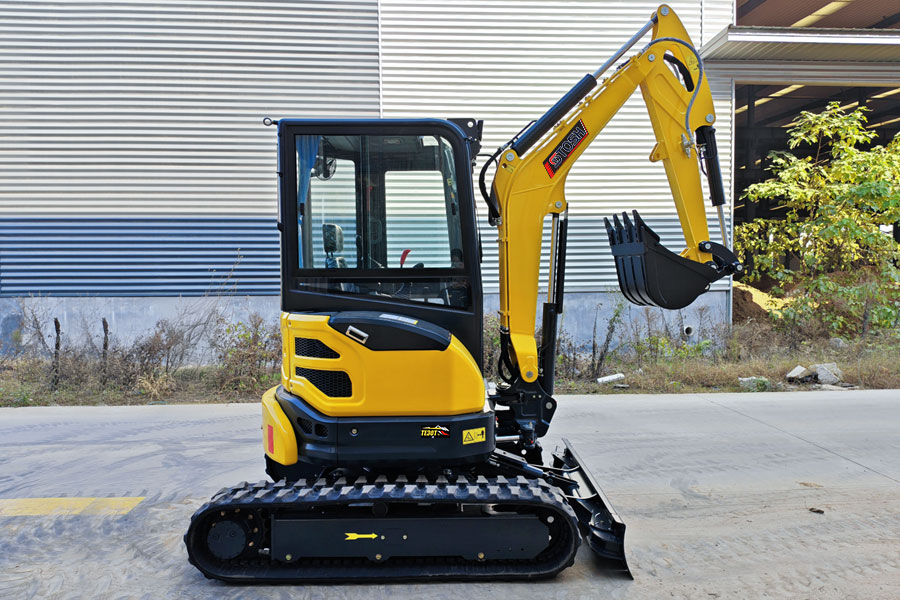

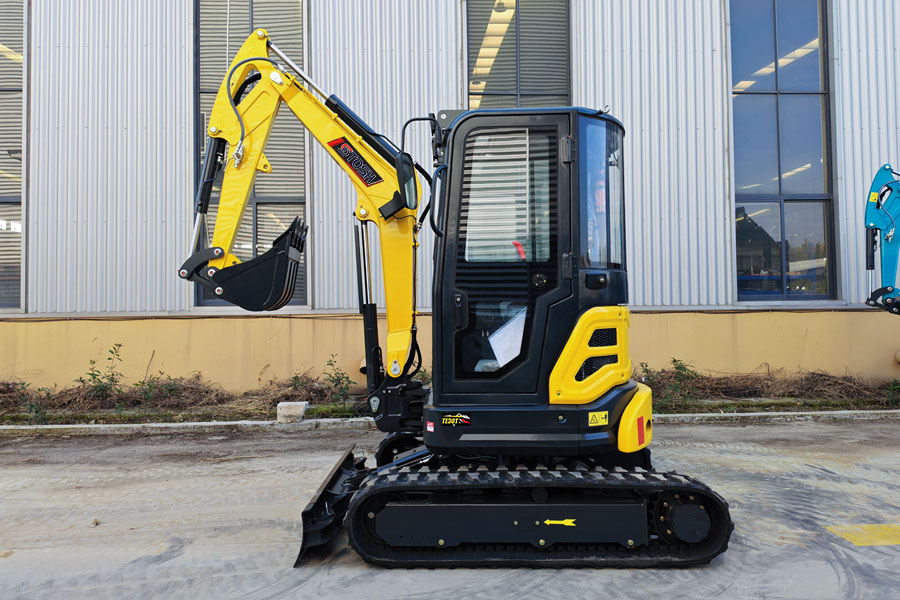

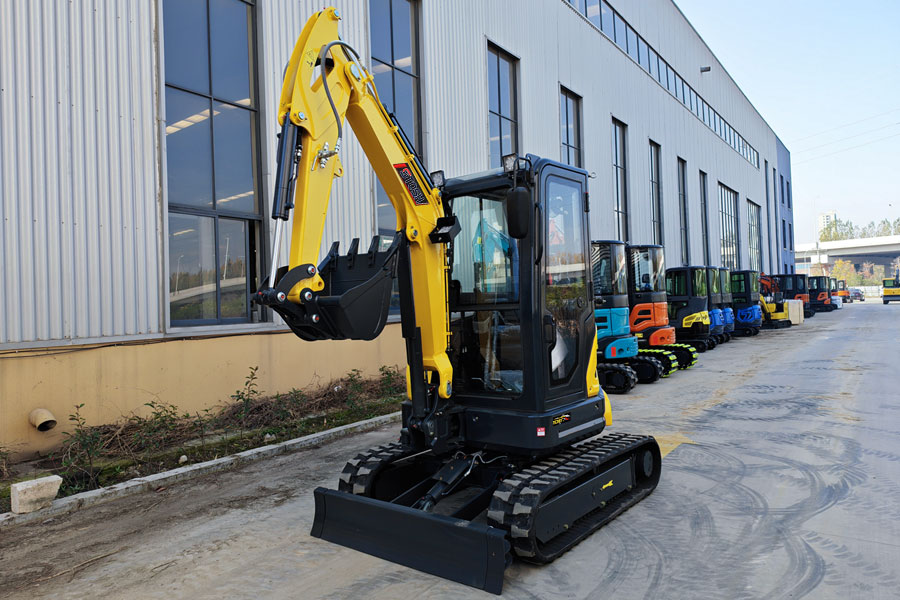

TE30T Cabin 3-Ton Mini Excavator
The TE30T Cabin mini excavator combines an enclosed operator cab, 300 mm rubber tracks and 70 L/min variable piston hydraulics. With a Yanmar diesel engine, adjustable undercarriage, 2.59 m digging depth and 3.06 m dumping height, it supports utility trenching and compact construction.
Technical Specifications
| Model | TE30T Cabin |
| Operating Weight | 3,000 kg |
| Operator Cab | Fully Enclosed |
| Adjustable Chassis Width | 1,370–1,570 mm |
| Max. Digging Depth | 2,590 mm |
| Rubber Track Width | 300 mm |
| Hydraulic System | 24.5 MPa / 70 L/min |
| Engine | Yanmar 380F Diesel |
View Full Specifications▾
| Bucket Capacity | 0.068 m³ |
| Overall Length | 4,100 mm |
| Track Length | 1,960 mm |
| Tail Swing Radius | 700 mm |
| Ground Digging Reach | 4,640 mm |
| Max. Dumping Height | 3,060 mm |
| Travel Speed | 2.0 / 3.5 km/h |
| Bucket Digging Force | 20 kN |
| Ground Pressure | 27 kPa |
| Boom Swing Angle | Left 65° / Right 50° |
Equipment & Engine Options
Machine Configuration: Enclosed operator cab, adjustable 300 mm rubber tracks, variable piston pump, load-sensitive hydraulic valve, two-speed piston travel motors, offset boom, 515 mm digging bucket and front dozer blade.
Engine & Attachments: Yanmar 380F three-cylinder water-cooled diesel (15.2 kW). Contact us to confirm emissions documentation, available attachments and auxiliary hydraulic flow requirements.
Get a TE30T Cabin Mini Excavator Quote
Request TE30T Cabin pricing and FOB/CIF quotations for your destination port.
Choose single or multiple units and ask about cabin equipment, compatible attachments and other options.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and intended application for a tailored offer.
Key Advantages
1. Enclosed Operator Cabin: Provides additional shielding from wind, airborne dust and light rain during suitable outdoor work.
2. Wide-Track Hydraulic Configuration: The 300 mm rubber tracks, 1,370–1,570 mm adjustable chassis and 70 L/min variable piston pump support varied working requirements.
3. Extended Working Range: A 2.59 m digging depth and 3.06 m dumping height support trench excavation and material handling.
Applications
Utility Trenching: Excavation for drainage, water pipes and underground cables.
Construction Sites: Foundation preparation, material loading and compact earthmoving.
Landscaping: Ground preparation, drainage channels and excavation.
Note: Confirm cabin-version weight, overall height, ventilation, engine emissions documentation, auxiliary hydraulic specifications and shipping dimensions before ordering.
