TE30T Mini Excavator
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operation weight: 3000Kg
Bucket capacity: 0.068cbm
Rated power: 15.2Kw
Product Details

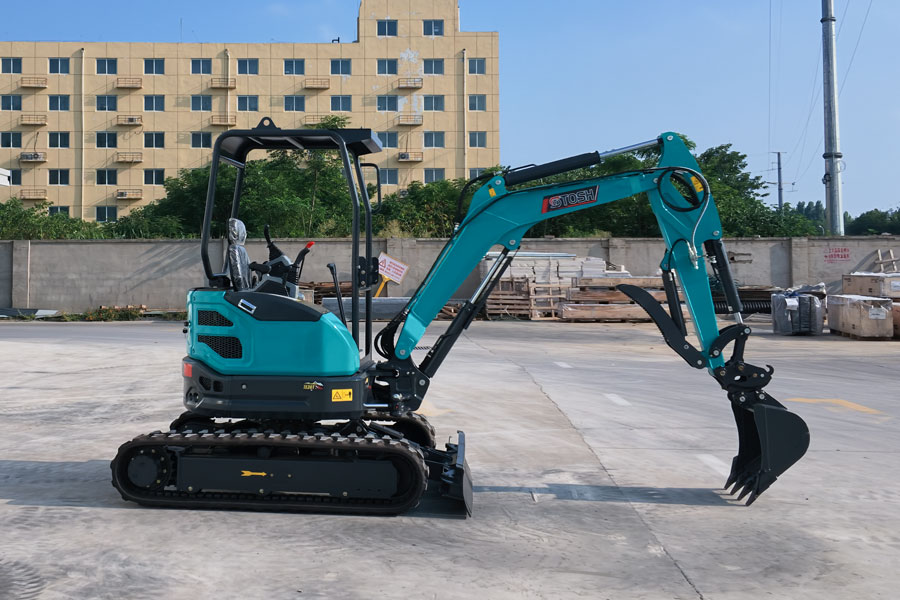

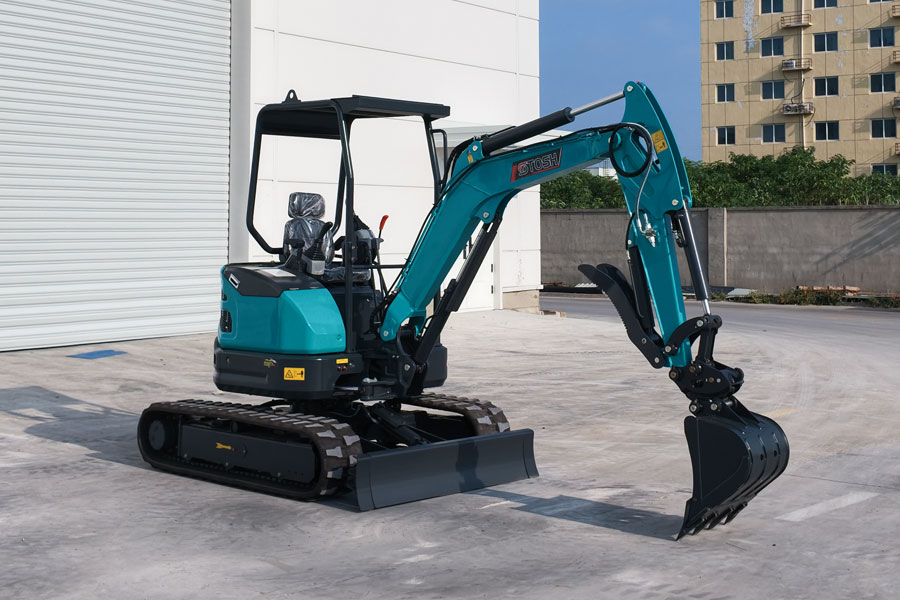

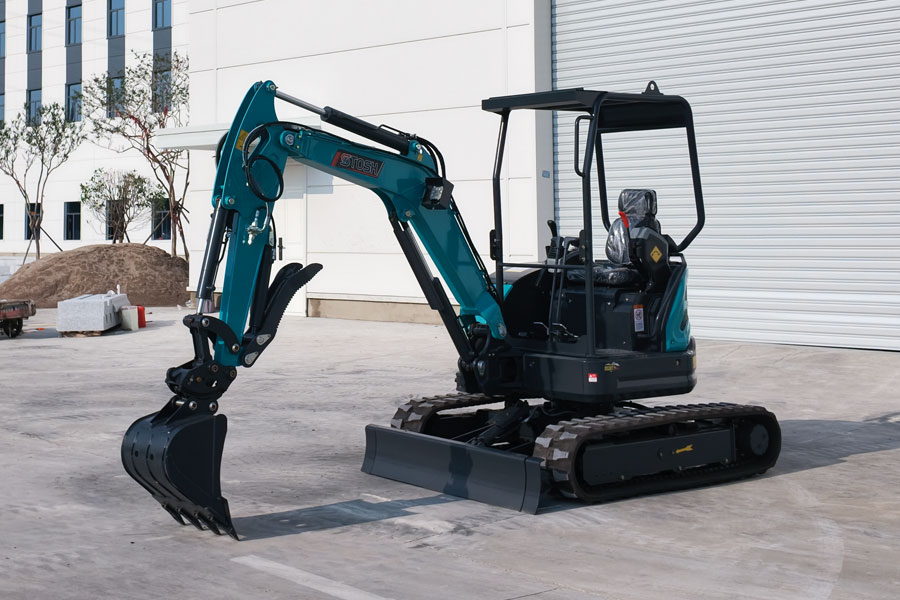

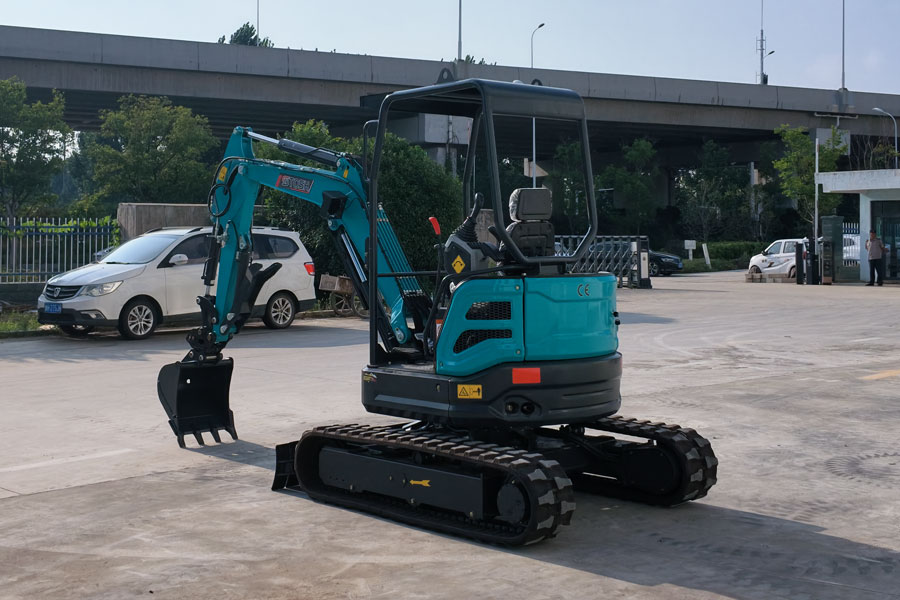

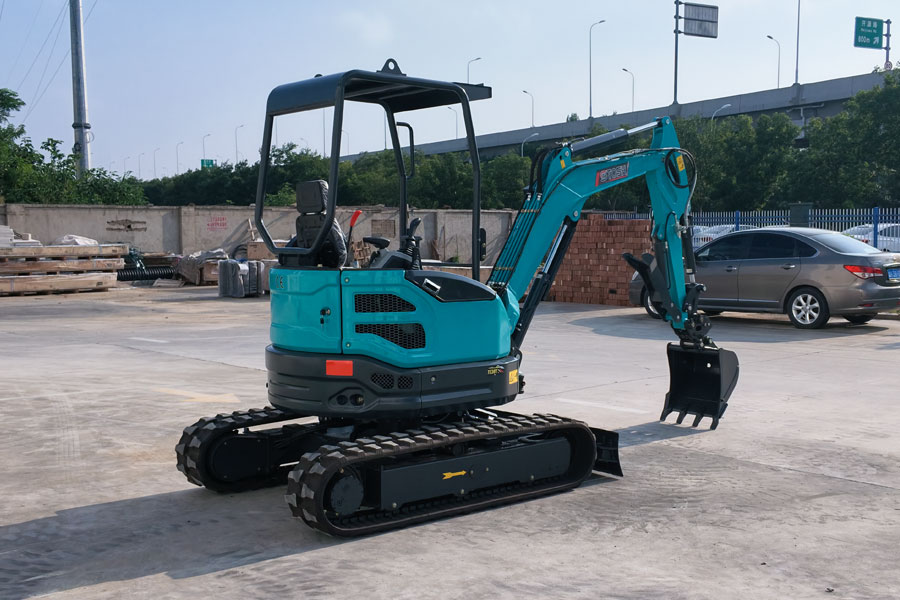

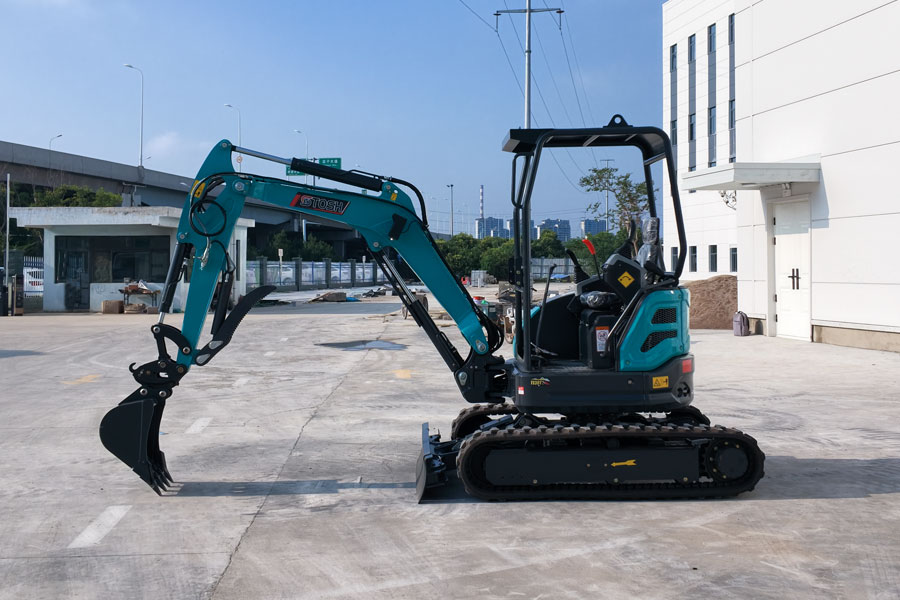

TE30T Canopy 3-Ton Mini Excavator
The TE30T Canopy mini excavator combines 300 mm rubber tracks, 70 L/min variable piston hydraulics and a 2.59 m digging depth. With a Yanmar diesel engine, adjustable undercarriage and 3.06 m dumping height, it supports utility trenching and compact construction projects.
Technical Specifications
| Model | TE30T Canopy |
| Operating Weight | 3,000 kg |
| Operator Station | Open Canopy |
| Adjustable Chassis Width | 1,370–1,570 mm |
| Max. Digging Depth | 2,590 mm |
| Rubber Track Width | 300 mm |
| Hydraulic System | 24.5 MPa / 70 L/min |
| Engine | Yanmar 380F Diesel |
View Full Specifications▾
| Bucket Capacity | 0.068 m³ |
| Overall Dimensions | 4,100 × 2,440 mm (L × H) |
| Track Length | 1,960 mm |
| Tail Swing Radius | 700 mm |
| Ground Digging Reach | 4,640 mm |
| Max. Dumping Height | 3,060 mm |
| Travel Speed | 2.0 / 3.5 km/h |
| Bucket Digging Force | 20 kN |
| Ground Pressure | 27 kPa |
| Boom Swing Angle | Left 65° / Right 50° |
Equipment & Engine Options
Machine Configuration: Open canopy, adjustable 300 mm rubber tracks, variable piston pump, load-sensitive hydraulic valve, two-speed piston travel motors, offset boom, 515 mm digging bucket and front dozer blade.
Engine & Attachments: Yanmar 380F three-cylinder water-cooled diesel (15.2 kW). Contact us to confirm emissions documentation, available attachments and auxiliary hydraulic flow requirements.
Get a TE30T Canopy Mini Excavator Quote
Request TE30T Canopy pricing and FOB/CIF quotations for your destination port.
Choose single or multiple units and ask about suitable hydraulic attachments and equipment options.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and intended application for a tailored offer.
Key Advantages
1. Wider Crawler Undercarriage: The 300 mm rubber tracks and 1,960 mm track length provide a broad crawler footprint with 27 kPa rated ground pressure.
2. Variable Piston Hydraulics: A 70 L/min pump and 24.5 MPa maximum pressure provide the specified hydraulic capacity for machine operation.
3. Extended Working Range: A 2.59 m digging depth and 3.06 m dumping height support trench excavation and material handling.
Applications
Utility Trenching: Excavation for drainage, water pipes and underground cables.
Construction Sites: Foundation preparation, material loading and compact earthmoving.
Landscaping: Ground preparation, drainage channels and excavation.
Note: Confirm engine emissions documentation, canopy protection, auxiliary hydraulic specifications, attachment compatibility and shipping dimensions before ordering.
