TE30 Mini Excavator
- 12-Month Warranty
- Factory Direct Price
- Fast Global Shipping
- 24/7 WhatsApp Support
Operation weight: 3000Kg
Bucket capacity: 0.068cbm
Rated power: 14Kw
Product Details

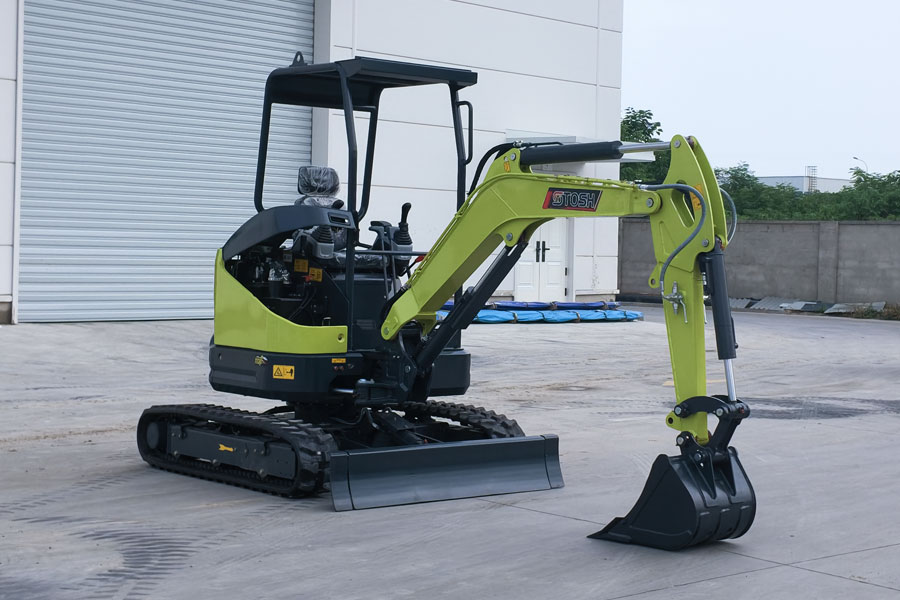

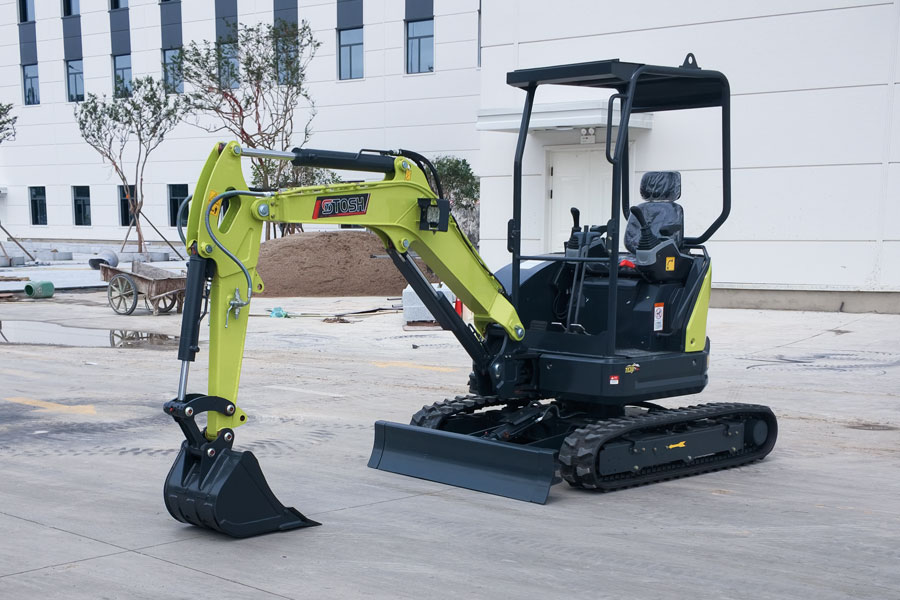

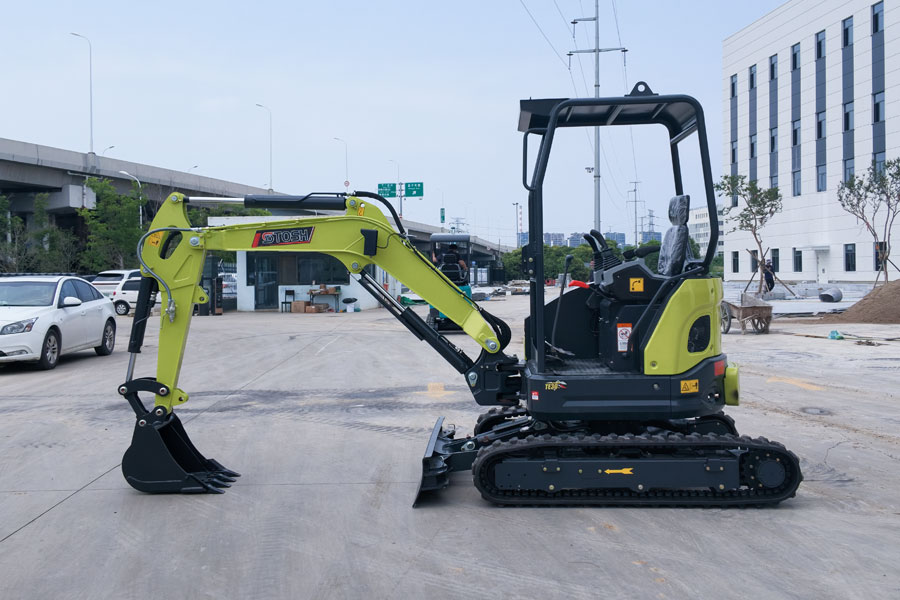

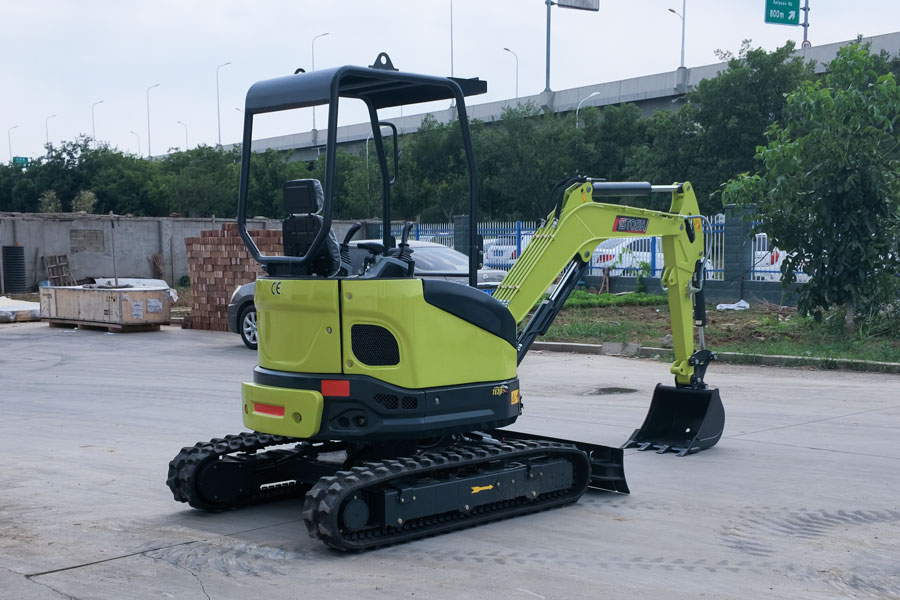

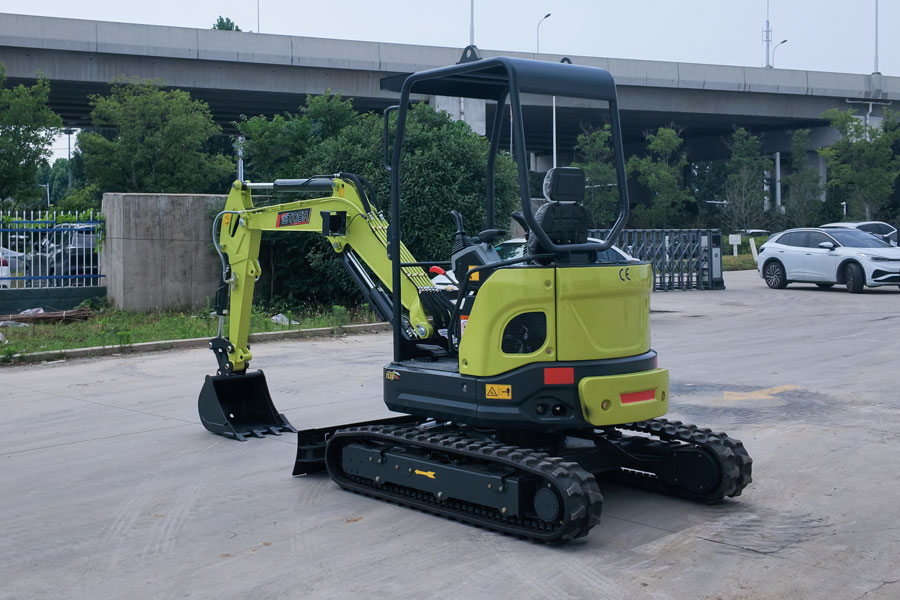

TE30 Canopy 3-Ton Mini Excavator
The TE30 Canopy mini excavator combines a 3,000 kg operating weight, 24 kN bucket digging force and variable piston hydraulics. With a Kubota D1105 diesel engine, adjustable tracks and 2.41 m digging depth, it supports utility trenching and compact construction projects.
Technical Specifications
| Model | TE30 Canopy |
| Operating Weight | 3,000 kg |
| Operator Station | Open Canopy |
| Adjustable Chassis Width | 1,300–1,500 mm |
| Max. Digging Depth | 2,410 mm |
| Bucket Digging Force | 24 kN |
| Hydraulic System | 24.5 MPa / 61.6 L/min |
| Engine | Kubota D1105 Diesel |
View Full Specifications▾
| Bucket Capacity | 0.068 m³ |
| Overall Dimensions | 4,100 × 2,440 mm (L × H) |
| Tail Swing Radius | 670 mm |
| Max. Digging Reach | 4,400 mm |
| Max. Dumping Height | 2,880 mm |
| Travel Speed | 2.0 / 3.8 km/h |
| Arm Digging Force | 14.8 kN |
| Hydraulic Pump | Variable Piston Pump |
| Track Length | 1,860 mm |
| Boom Swing Angle | Left 65° / Right 50° |
Equipment & Engine Options
Machine Configuration: Open canopy, adjustable rubber tracks, variable piston pump, load-sensitive hydraulic valve, two-speed piston travel motors, offset boom, 515 mm digging bucket and front dozer blade.
Engine & Attachments: Kubota D1105 three-cylinder water-cooled diesel (14 kW). Contact us to confirm engine emissions documentation, available attachments and auxiliary hydraulic flow requirements.
Get a TE30 Canopy Mini Excavator Quote
Request TE30 Canopy pricing and FOB/CIF quotations for your destination port.
Choose single or multiple units and ask about suitable hydraulic attachments and equipment options.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and intended application for a tailored offer.
Key Advantages
1. 3-Ton Digging Capacity: The 24 kN bucket force and 14.8 kN arm force support trenching and material excavation.
2. Variable Piston Hydraulics: A 61.6 L/min pump and 24.5 MPa maximum pressure provide the specified hydraulic capacity for machine operation.
3. Compact Tail Swing: A 670 mm tail swing radius and adjustable undercarriage support positioning in restricted work areas.
Applications
Utility Trenching: Excavation for drainage, water pipes and underground cables.
Urban Construction: Excavation and site preparation around space-limited work areas.
Landscaping: Ground preparation, drainage channels and earthmoving.
Note: Confirm engine emissions documentation, canopy protection, auxiliary hydraulic specifications, attachment compatibility and shipping dimensions before ordering.
