Operation weight: 2500Kg
Bucket capacity: 0.08cbm
Rated power: 14.2/18.8/29Kw
Product Details

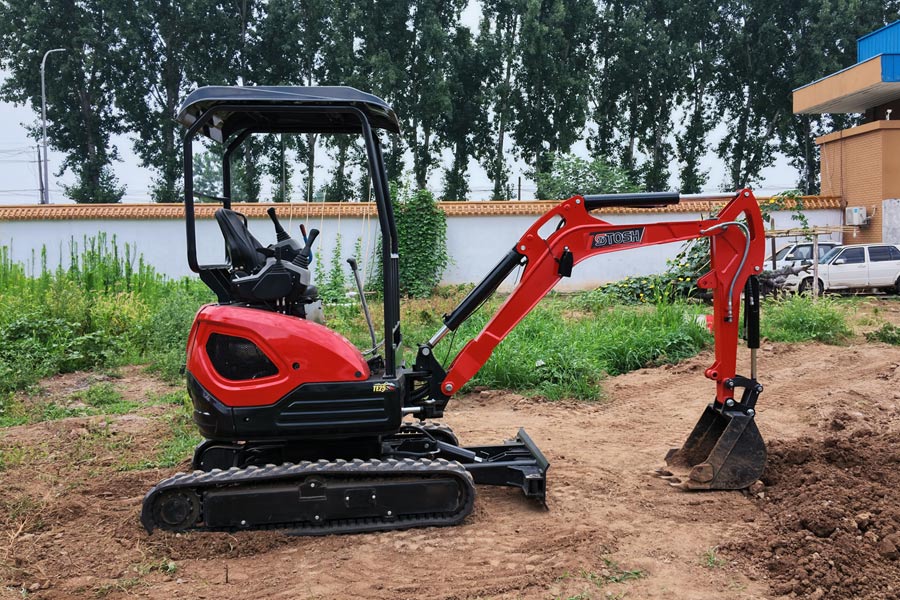

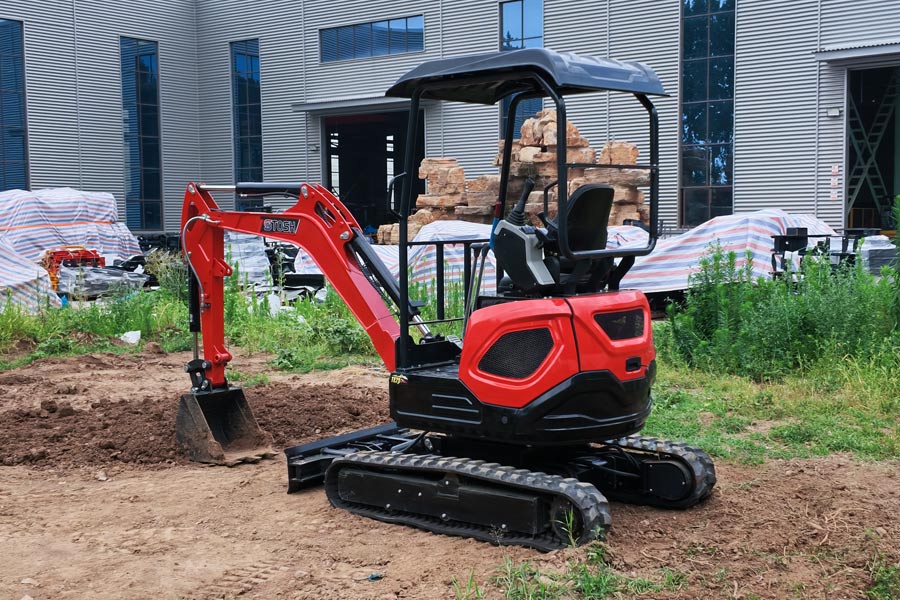

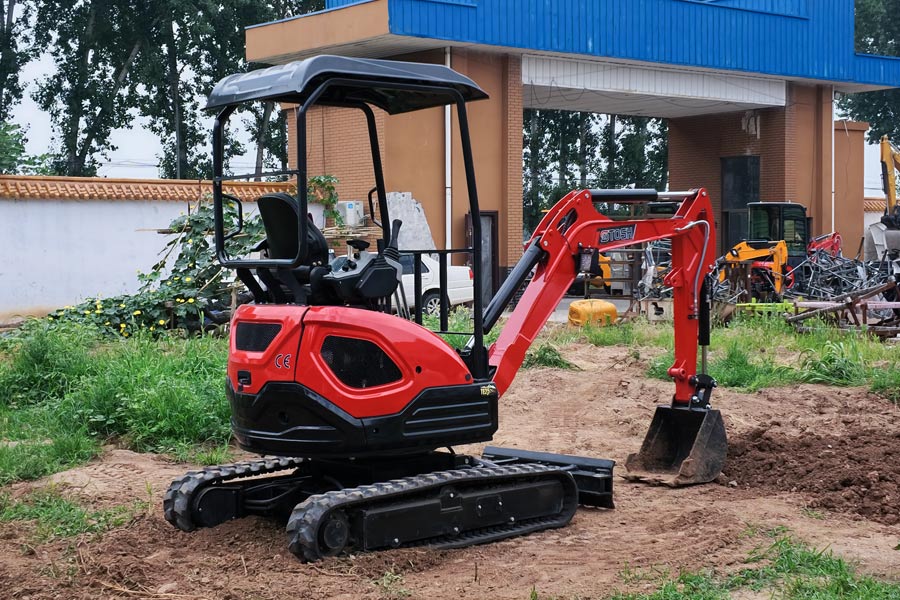

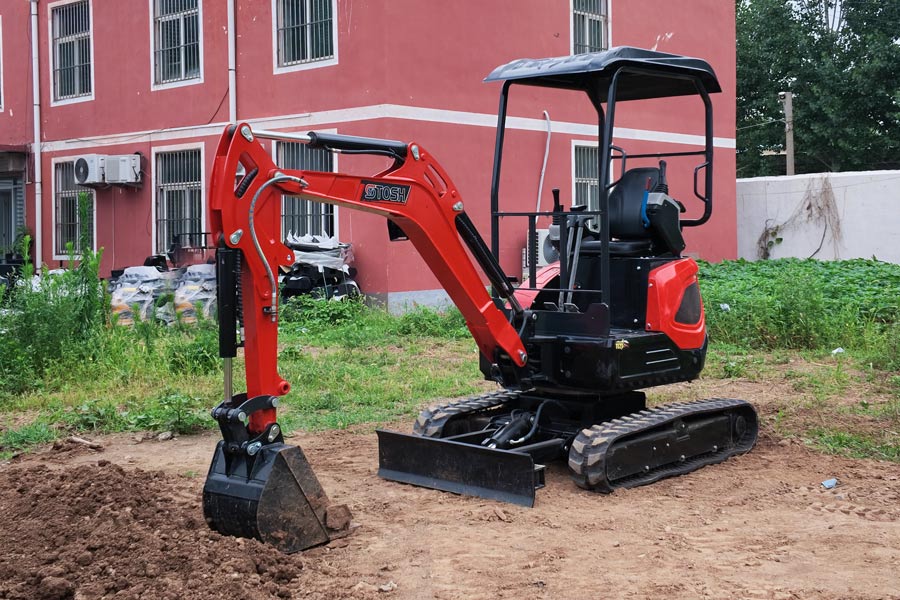

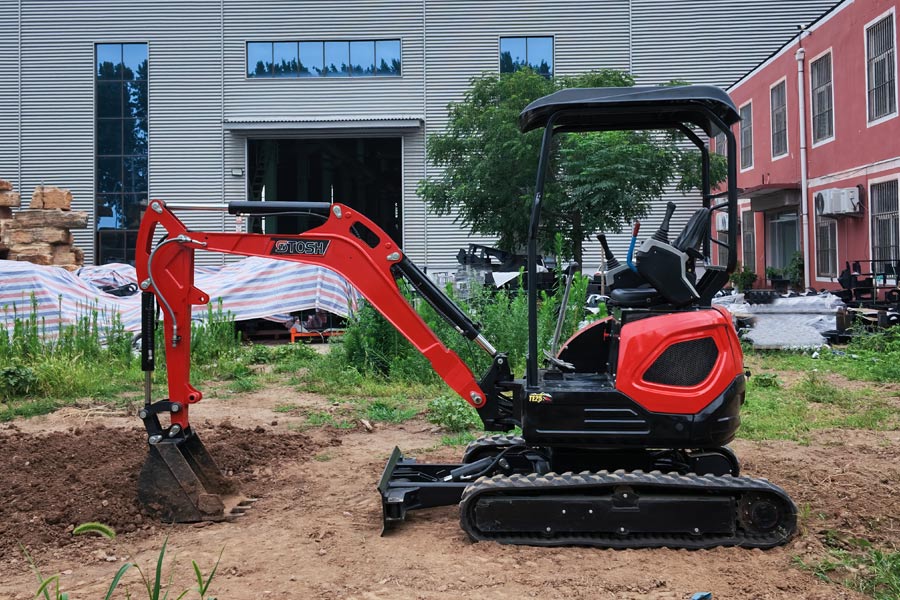

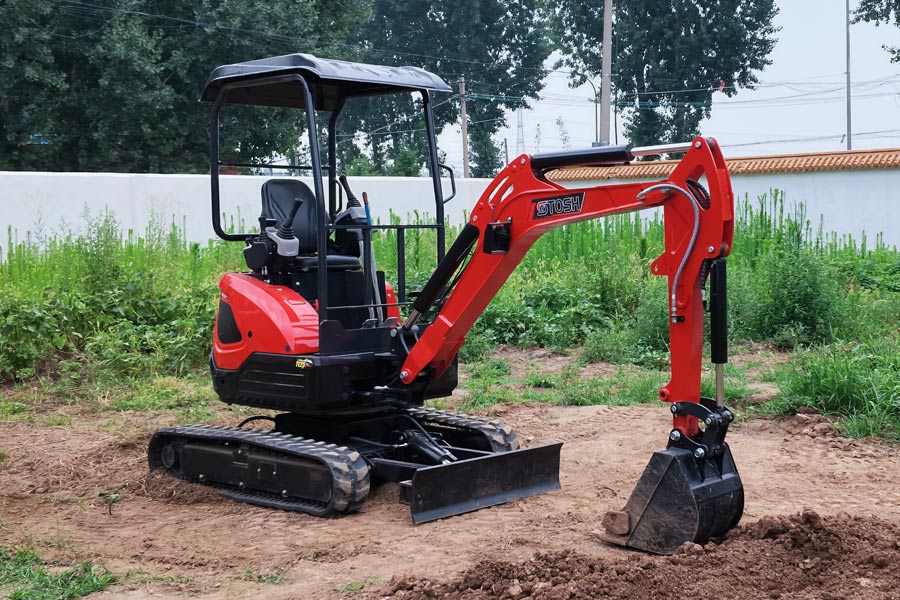

TE25 Canopy 2.5-Ton Mini Excavator
The TE25 Canopy mini excavator combines a 2,500 kg operating weight, 0.08 m³ bucket and 22 kN bucket digging force. With a 2.65 m digging depth, retractable tracks and Kubota or Laidong diesel options, it suits utility trenching and compact construction.
Technical Specifications
| Model | TE25 Canopy |
| Operating Weight | 2,500 kg |
| Operator Station | Open Canopy |
| Adjustable Chassis Width | 1,100–1,400 mm |
| Max. Digging Depth | 2,650 mm |
| Bucket Capacity | 0.08 m³ |
| Bucket Digging Force | 22 kN |
| Engine Options | Kubota D1105 / Laidong LL385 |
View Full Specifications▾
| Overall Dimensions | 3,750 × 2,400 mm (L × H) |
| Track Length | 1,860 mm |
| Ground Digging Reach | 4,450 mm |
| Max. Dumping Height | 2,800 mm |
| Travel Speed | 3.3 / 6.4 km/h |
| Arm Digging Force | 12 kN |
| Hydraulic System | 22 MPa / 60 L/min |
| Ground Pressure | 24 kPa |
| Rubber Track Width | 230 mm |
| Boom Swing Angle | Left 45° / Right 45° |
Equipment & Engine Options
Machine Configuration: Open canopy, retractable rubber tracks, two-speed travel, hydraulic gear pump, nine-way valve, offset boom, 450 mm digging bucket and front dozer blade.
Engine & Attachments: Laidong LL385 diesel (29 kW Stage II or 18.8 kW Euro 5 version) or Kubota D1105 diesel (14.2 kW). Confirm engine availability, emissions documentation and compatible attachments.
Get a TE25 Canopy Mini Excavator Quote
Request TE25 Canopy pricing and FOB/CIF quotations for your destination port.
Choose single or multiple units, preferred engine options and compatible attachments.
Contact us via WhatsApp or the inquiry form. Share your country, quantity and application for a tailored offer.
Key Advantages
1. Higher Digging Capacity: The 0.08 m³ bucket and 22 kN digging force support trenching and material excavation.
2. Adjustable Undercarriage: Extend the track width from 1,100 mm to 1,400 mm to suit site access and working conditions.
3. Extended Working Range: A 2.65 m digging depth and 2.8 m dumping height support utility excavation and material loading.
Applications
Utility Trenching: Excavation for drainage, water pipes and underground cables.
Landscaping: Ground preparation, drainage channels and garden excavation.
Small Construction: Foundation excavation, earthmoving and site preparation.
Note: Confirm engine availability, emissions documents, canopy protection, hydraulic attachment compatibility and transport dimensions before ordering.
